High availability

High Availability & Redundancy Controller

Enterprise failover and redundancy supervisor ensuring zero-downtime, continuous 24/7 channel transmission.

1+1N+1HeartbeatState mirror

Request demo Capabilities

Primary

ONLINE · FRAME LOCKED

Backup

READY · MIRRORED

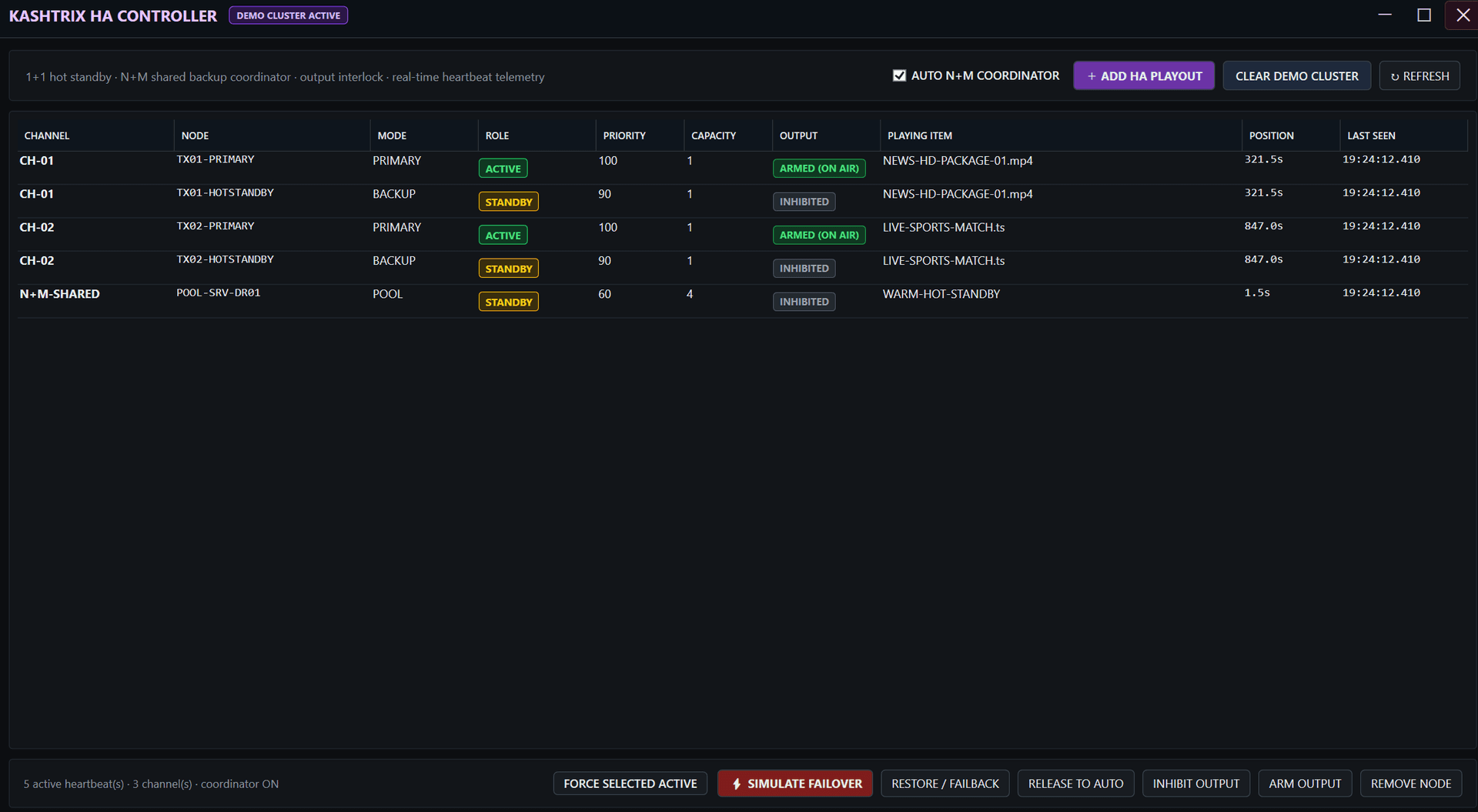

High Availability & Redundancy Controller interface

View 01 / 03 · Redundancy Supervisor

1+1 Redundant Playout Supervisor & Heartbeat Engine

Continuous health surveillance maintaining 99.999% transmission continuity.

High-availability clustering engine running active surveillance across Primary (Main) and Secondary (Backup) playout channels. Monitors process heartbeats, GPU render pipelines, and network link health.

Sub-second heartbeat surveillance:Continuous UDP/TCP heartbeat polling between primary and secondary playout servers

Deep telemetry health probes:Continuous monitoring of GPU decode health, video buffers, and OS stability

Automated state mirroring:Real-time playlist synchronization keeping both channels locked to identical frame offsets

Isolated dual network architecture:Redundant management and media IP links preventing split-brain conditions

High Availability & Redundancy Controller - 1+1 Redundant Playout Supervisor & Heartbeat Engine

Interactive Workspace

Workstation Preview · View 01Native Workstation Display · HA

View 02 / 03 · Sub-Frame Failover

Clean Sub-Frame Failover Switching Engine

Automatic transfer to backup transmission in under 40 milliseconds.

Triggers clean downstream hardware router switching upon detecting a primary channel anomaly. The switch occurs within a single video frame without audio pops, black flashes, or viewer interruption.

Sub-40ms clean switching:Ultra-fast failover triggers downstream routing switchers within a single video frame

Glitch-free audio crossfade:Seamless audio transition eliminating acoustic pops, clicks, or digital muting

Hysteresis safety lock:Configurable failover debounce timers preventing flapping during transient network blips

Universal router protocol support:Native integration with Blackmagic Videohub, Ross, Evertz, and Grass Valley routers

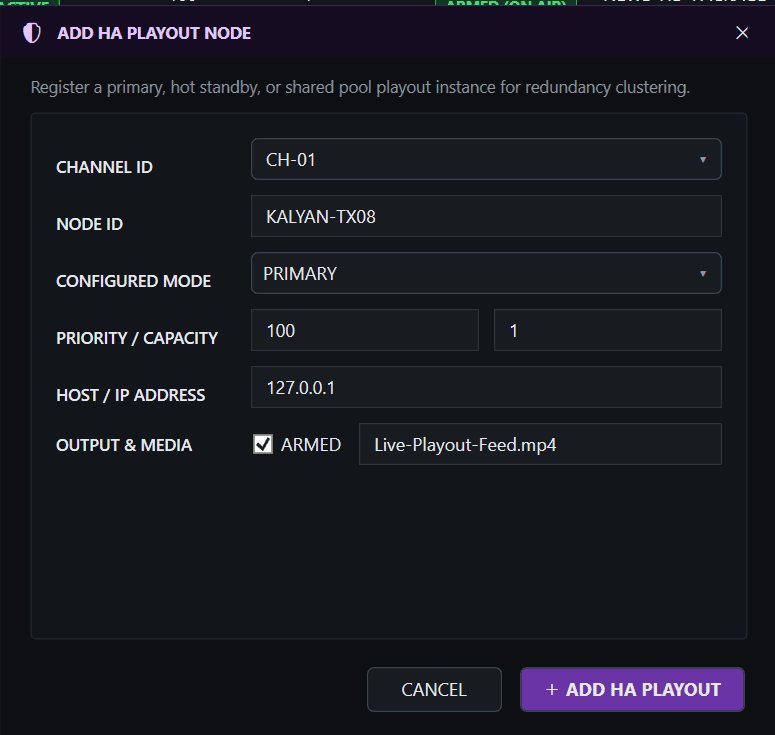

High Availability & Redundancy Controller - Clean Sub-Frame Failover Switching Engine

Interactive Workspace

Workstation Preview · View 02Native Workstation Display · HA

View 03 / 03 · State Mirroring

Real-Time Database & Playlist State Replication

Frame-accurate continuous synchronization of playout and graphics state.

Bi-directional replication engine syncing active playlist items, clip playhead offsets, loaded graphics templates, and manual override flags across both playout nodes with zero lag.

Frame-accurate playhead sync:Synchronous clip position tracking ensuring the backup node takes air without seam

Dynamic graphics state replication:Real-time mirroring of on-air lower thirds, tickers, and DVE overlay states

Seamless post-recovery resync:Automatic background resynchronization of primary node after maintenance reboot

Comprehensive audit logging:Complete chronological incident logs recording failover events with sub-second timestamps

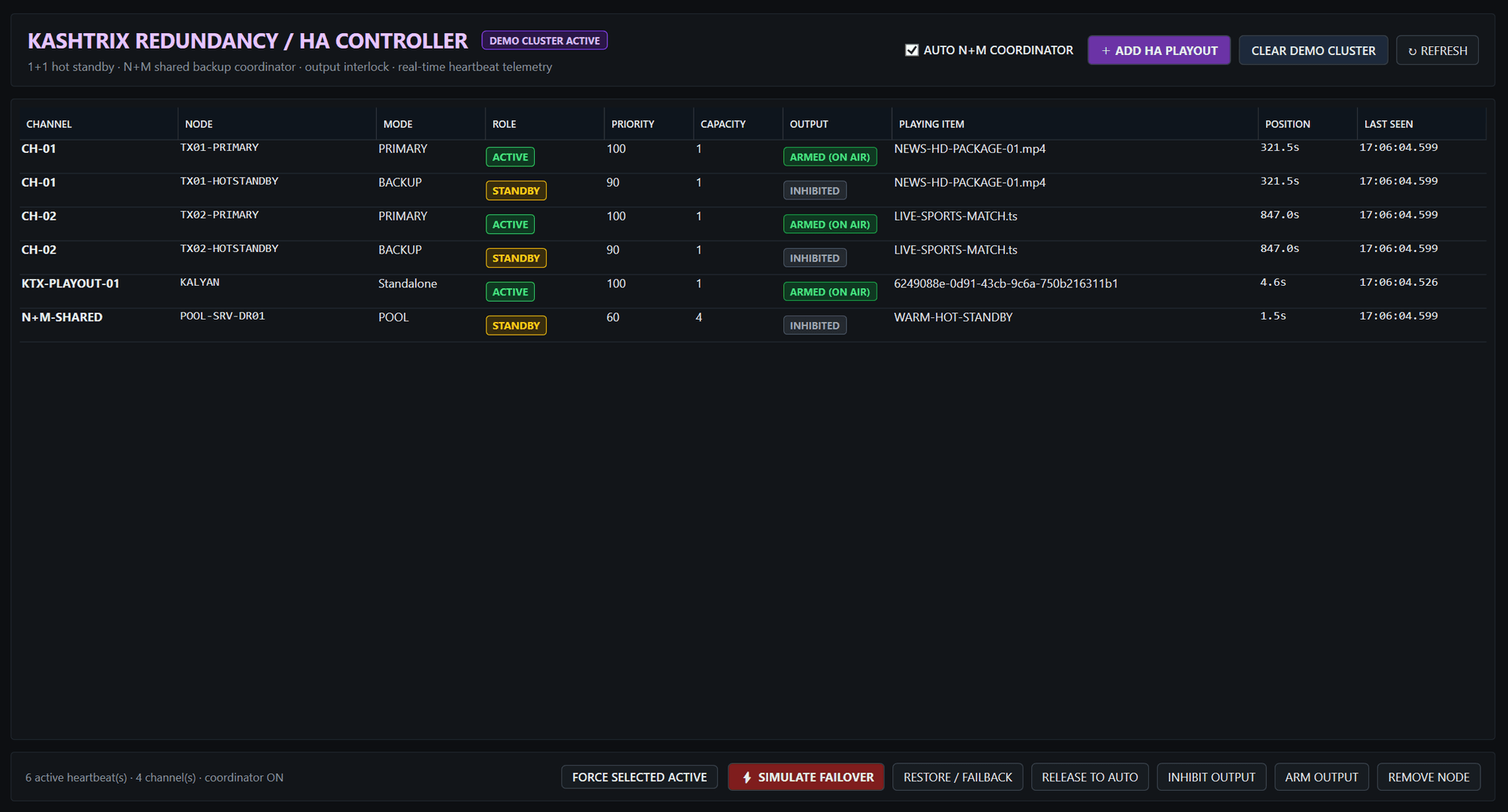

High Availability & Redundancy Controller - Real-Time Database & Playlist State Replication

Interactive Workspace

Workstation Preview · View 03Native Workstation Display · HA

Capabilities

Built around the high availability workflow.

The page uses the interface and operating model of this application only. Screenshots from unrelated Kashtrix products are not reused here.

1+1 & N+1 Redundancy Topologies

Monitors Main (Primary) and Backup (Secondary) playout servers over redundant network heartbeats.

Continuous State & Clip Synchronization

Keeps the backup playout engine in exact frame lock with the primary server, mirroring playlist state, active clip position, and graphic overlays.

Automatic Seamless Failover

Detects hardware crash, software exception, frame freeze, or network failure on the primary node.

Instantly triggers SDI/IP matrix router switchovers and activates the backup transmission stream without visible disruption on home TV screens.

Role

Workspace

High Availability & Redundancy Controller

Platform

Windows x64

Operation

24/7 broadcast

Next application

Master Control Playout & Compositor Engine

Core 24/7 master control playout engine delivering continuous, glitch-free broadcast video, audio, and graphics rendering.

Explore Playout

HA deployment

Evaluate High Availability & Redundancy Controller for your facility.

Share your channel count, video standards, hardware interfaces, storage paths and automation requirements. We’ll map configuration and integration options around the actual broadcast workflow.

Request demo Talk to engineering
