Master control

Master Control Playout & Compositor Engine

Core 24/7 master control playout engine delivering continuous, glitch-free broadcast video, audio, and graphics rendering.

PGM / PVWSMPTE timingSCTE-3524/7

Request demo Capabilities

PGM + PVW

Independent buses

SMPTE

Frame timing

24/7

Continuous playout

Master Control Playout & Compositor Engine interface

View 01 / 04 · Master Control Surface

Primary Master Control & Program Bus

24/7 continuous linear transmission with zero-downtime execution.

Direct3D11 zero-copy rendering engine driving master broadcast outputs. Displays active program clip countdown, upcoming preview event, real-time LTC/VITC timecode, and multichannel audio VU/PPM peak meters.

Frame-accurate transition execution:Sub-frame transition timing (cuts, dissolves, wipes, pushes) with frame-locked sync

Hardware decoding engine:Multi-format hardware NVDEC and DXVA2 decoding with Apple ProRes, Avid DNxHD, Sony XDCAM, and HEVC

On-air real-time compositing:Integrated station bug and lower-third overlay rendering without dropping frames

SMPTE master clock synchronization:Continuous LTC/VITC timecode tracking with NTP clock sync and real-time event countdowns

Master Control Playout & Compositor Engine - Primary Master Control & Program Bus

Interactive Workspace

Workstation Preview · View 01Native Workstation Display · Playout

View 02 / 04 · Operator Console

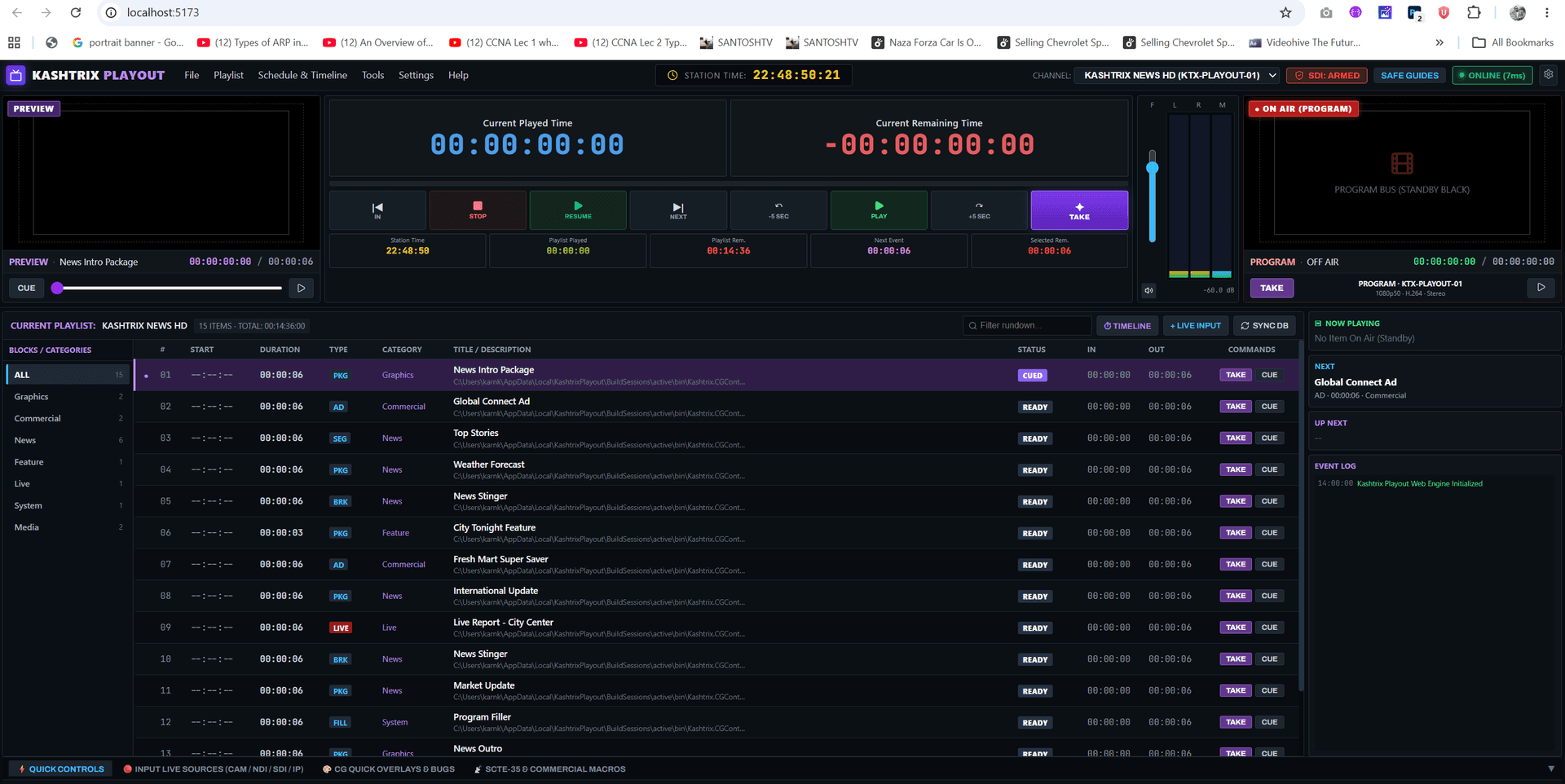

Remote Web Playout & Control Surface

Full-fidelity browser-based operational control for MCR engineers.

Secure, low-latency web management surface allowing broadcast operators to supervise playout channels, inspect rundown timing, trigger emergency manual interventions, and audit as-run logs remotely.

Remote operational intervention:Web-based clip cueing, pausing, and emergency cut-to-live source switching

Audio peak monitoring:Live audio peak program metering and multi-channel volume trim controls

Real-time countdown telemetry:Sub-second elapsed time, remaining duration, and time-to-next-event counters

Comprehensive access control:Secure TLS WebSocket control plane with role-based MCR operator permissions

Master Control Playout & Compositor Engine - Remote Web Playout & Control Surface

Interactive Workspace

Workstation Preview · View 02Native Workstation Display · Playout

View 03 / 04 · Suite Integration

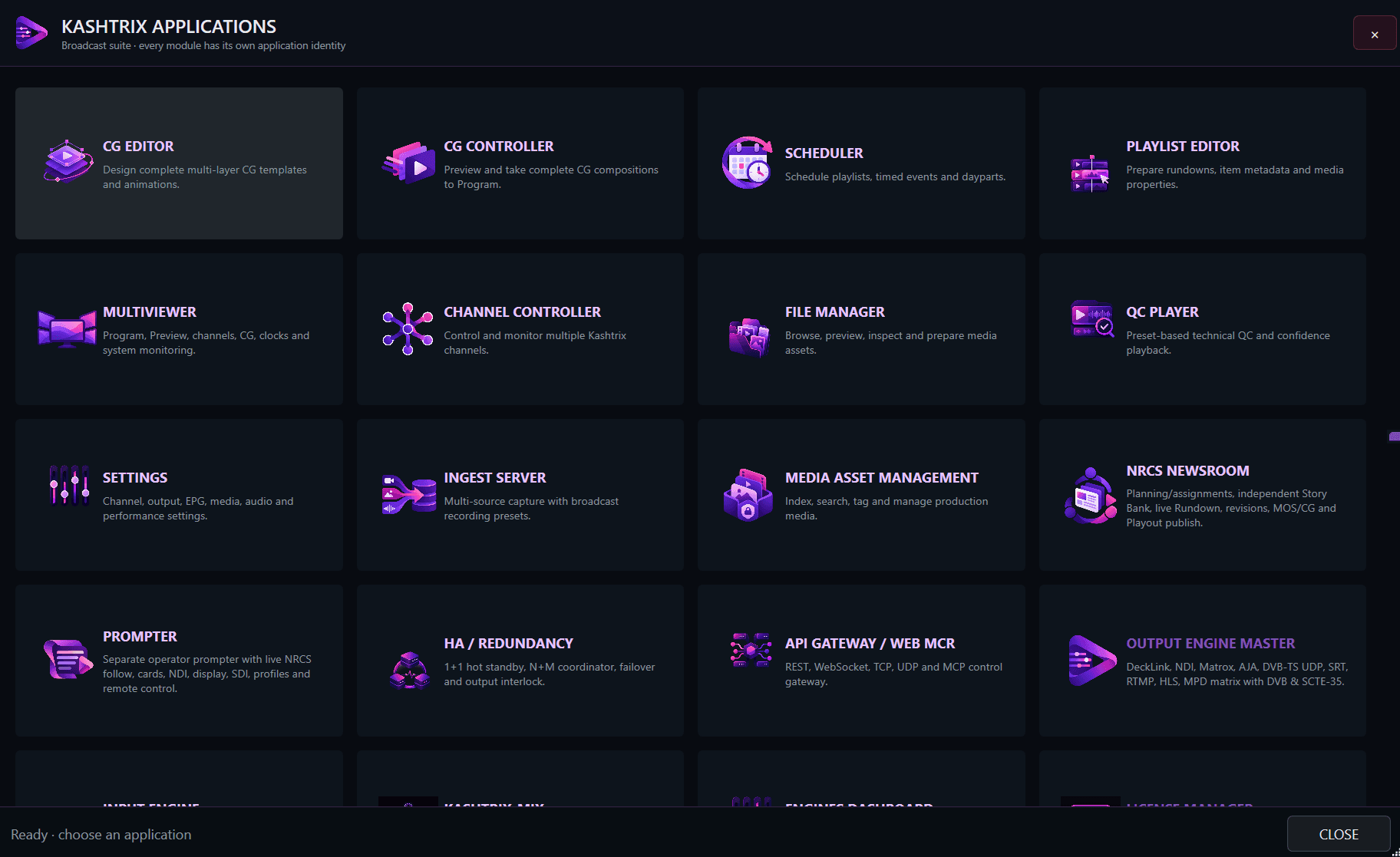

Unified Broadcast Suite Launcher

Seamless inter-module communication across the complete Kashtrix ecosystem.

Native desktop hub providing one-click launch and real-time status monitoring for all broadcast modules—from CG Editor and NRCS Newsroom to Output Engine and Redundancy HA Controllers.

Single-click module launcher:Instant access to all specialized desktop broadcast applications from a single tray

Inter-process IPC coordination:Shared channel presets, active clips, and rundown databases with zero latency

System health diagnostics:Real-time service monitoring, port telemetry, and network endpoint supervision

Automated workspace recall:Multi-monitor display window arrangement saving and instant layout restoration

Master Control Playout & Compositor Engine - Unified Broadcast Suite Launcher

Interactive Workspace

Workstation Preview · View 03Native Workstation Display · Playout

View 04 / 04 · Rundown Management

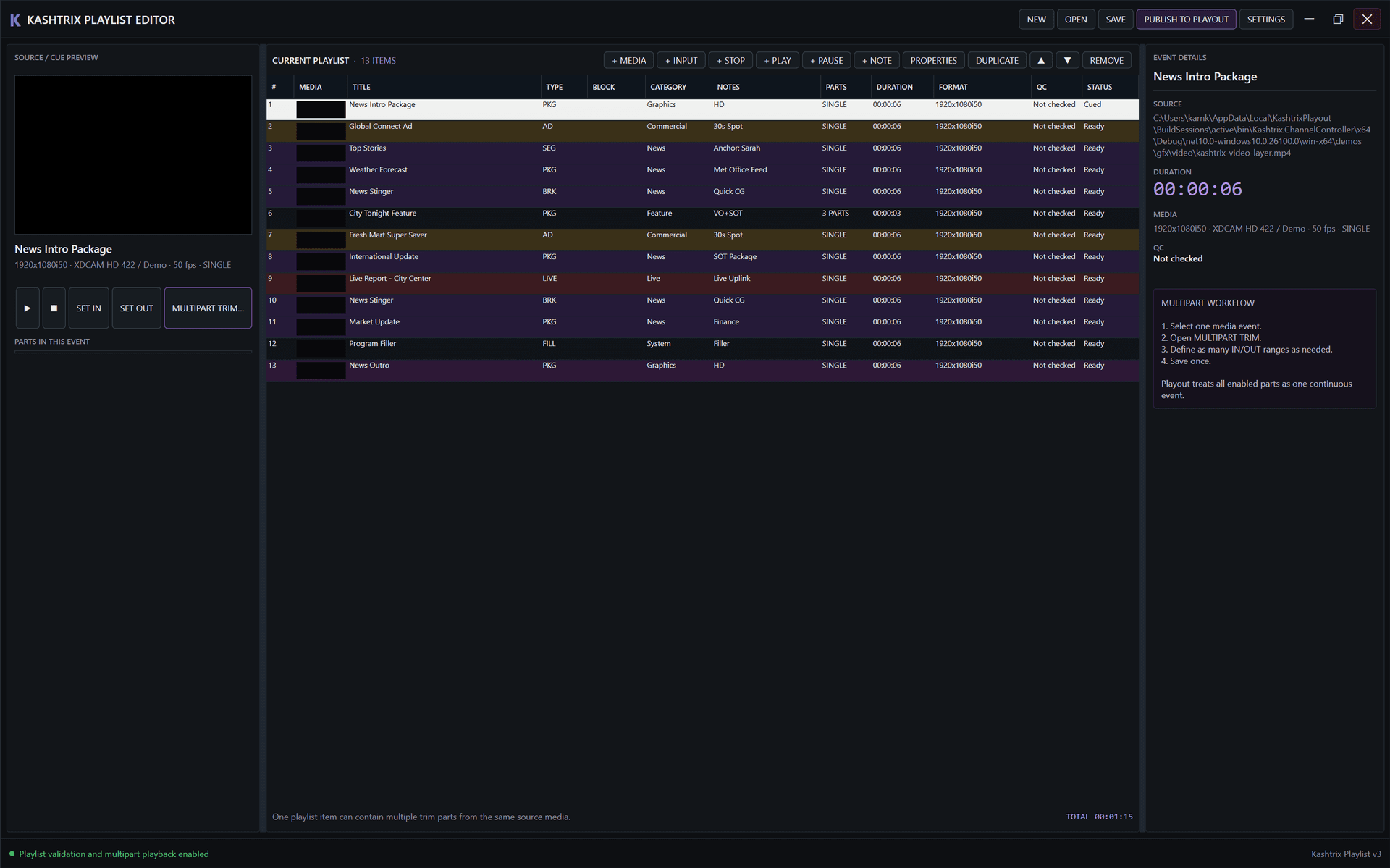

Master Rundown & Playlist Editor

Frame-accurate 24/7 schedule execution and media queue sequencing.

Professional rundown management module controlling linear playlist playback, hard-timed events, manual triggers, commercial block timing, and as-run log auditing.

Instant media bin loading:Drag and drop video clips, stinger transitions, and audio beds directly into live DDR channels

Color-coded category tagging:High-contrast event flags for Media, Commercial, Graphics, Live, and Filler clips

Wall-clock timing engine:Real-time schedule over/under calculation against station master clocks

Non-destructive live editing:Drag-and-drop reordering with safe insertion while playout is active on air

Master Control Playout & Compositor Engine - Master Rundown & Playlist Editor

Interactive Workspace

Workstation Preview · View 04Native Workstation Display · Playout

Capabilities

Built around the master control workflow.

The page uses the interface and operating model of this application only. Screenshots from unrelated Kashtrix products are not reused here.

Dual Independent Video Pipelines (PGM & PVW)

Program (PGM) Pipeline:Real-time presentation surface driving master broadcast outputs.

Preview (PVW) Pipeline:Frame-accurate preview channel allowing operators to inspect upcoming clips, trim points, and graphics overlays before taking them to air.

Transition & Mixing Engine

Seamless cuts, dissolves (crossfades), wipes, slides, and pushes with user-definable durations (frames or milliseconds).

Audio auto-follow-video crossfading with adjustable logarithmic and linear curve profiles.

Multi-Format Media Engine

Native hardware decoding via NVDEC, Intel QSV, DXVA2, and D3D11VA.

Native format support:Apple ProRes (422, 422 HQ, 4444), Avid DNxHD/DNxHR, Sony XDCAM HD422 (MXF), D10/IMX, Panasonic AVC-Intra, H.264/AVC, H.265/HEVC, MPEG-2 Broadcast Transport/Program Streams, WebM, MP4, MKV, AVI, and QuickTime MOV.

Transparent alpha-channel video playback (ProRes 4444, PNG sequences, WebM VP9 with alpha, QuickTime Animation).

On-Air Real-Time Graphics Compositor

Multi-layered Direct3D rendering engine overlays dynamic tickers, station bugs (logos), lower thirds, scoreboards, and emergency crawls without dropping frames.

Dynamic text field replacement on live graphics without stopping playback.

Frame-Accurate Clock & Timecode

SMPTE 12M linear timecode (LTC) and vertical interval timecode (VITC) support.

NTP and PTP master clock synchronizer.

Real-time countdown clocks:Elapsed time, Remaining time, Time to Next Event, and Next Program ID.

Auxiliary & Secondary Event Automation

Automated SCTE-35 digital cue marker injection for targeted ad insertion.

Downstream Keyer (DSK) auto-triggering on specific playlist events.

Router crosspoint triggers via GPI/O or IP commands.

Role

Playout

Workspace

Master Control Playout & Compositor Engine

Platform

Windows x64

Operation

24/7 broadcast

Next application

Transmission & Multi-Protocol Output

Multi-channel broadcast transmission and digital streaming matrix connecting playout video to physical broadcast cards, IP video networks, and internet CDNs.

Explore Transmission

Playout deployment

Evaluate Master Control Playout & Compositor Engine for your facility.

Share your channel count, video standards, hardware interfaces, storage paths and automation requirements. We’ll map configuration and integration options around the actual broadcast workflow.

Request demo Talk to engineering
