Kashtrix Studio
A specialized broadcast production surface engineered for live switching, multicam monitoring, 3D virtual sets, dynamic CG overlays, and multichannel audio mixing — built for directors who demand instant tactile response.
PGM / PVW
True two-bus switching
Virtual Sets
Real-time 3D chroma key
Multiviewer
Low-latency tally grid
.png&w=1920&q=75)
Control Room Architecture
Built for the Speed of Live Decisions
Every control, fader, and monitor is grouped by live production task so technical directors never lose sight of live output.
Program & Preview Bus
True two-bus switching architecture allowing directors to inspect composition and transitions before cutting to air.
Hardware Fader & Transitions
Support for physical USB/MIDI control surfaces, motorized T-Bars, and software transitions with sub-frame precision.
Multichannel Audio Console
Comprehensive audio control with EQ, dynamics, delay compensation, auto-mix, and headphone monitoring.
3D Virtual Sets & Keyer
GPU-accelerated chroma keying with despill algorithms, virtual camera tracking, and photo-realistic stage rendering.
Mosaic Multiviewer
Customizable multi-camera confidence grid with audio level meters, safe areas, and dynamic tally borders.
Direct Streaming & ISO Record
Simultaneous multi-bitrate RTMP/SRT streaming to CDNs while capturing master PGM and isolated camera feeds to disk.
Operational Modules & Workstations
5 Dedicated Production Surfaces
Kashtrix Studio divides production responsibilities into focused, high-performance workstation views — from live multicam switching and 3D virtual sets to on-air graphics and hardware I/O capture.
Master Live Production Switcher Desk
Program/Preview bus, hardware T-Bar fader, dual DDR playback, and automated macro execution.
A complete broadcast production control room surface engineered for live talk shows, news broadcasts, esports, and sports events. Operators switch live camera feeds, trigger transitions with the tactile T-Bar, fire automated DDR clip packages, manage auxiliary buses, and encode multi-destination internet streams.
.png&w=1920&q=75)

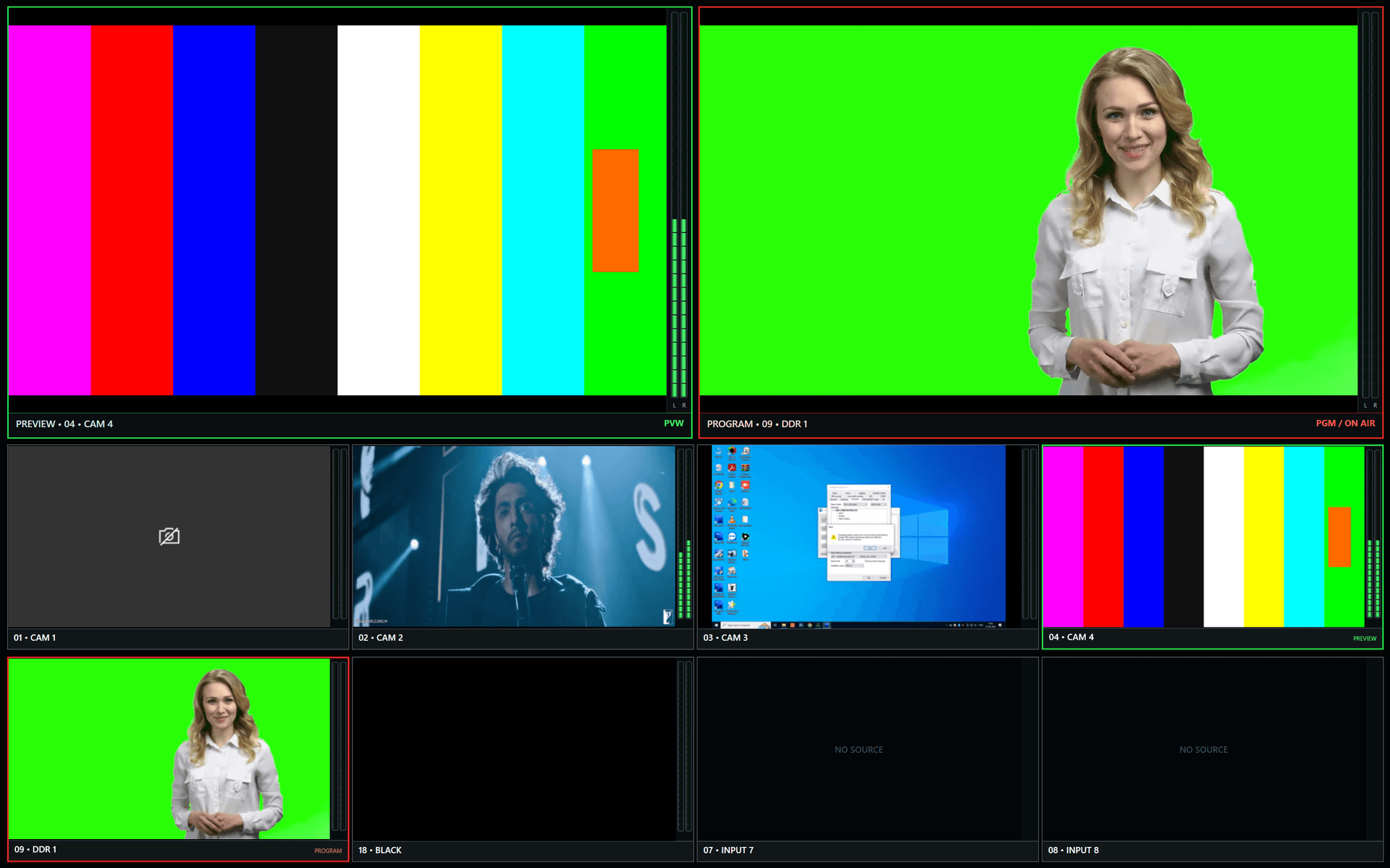

Program & Preview Multiview Confidence Stage
Full-fidelity multi-camera confidence grid with low-latency tally signaling and live audio bars.
High-precision Direct3D11 multiviewer displaying all studio inputs, media players, and master buses simultaneously. Anchors, directors, and technical operators keep visual confidence across all live cameras with distinct tally borders (Red for Program, Green for Preview).
.png&w=1920&q=75)

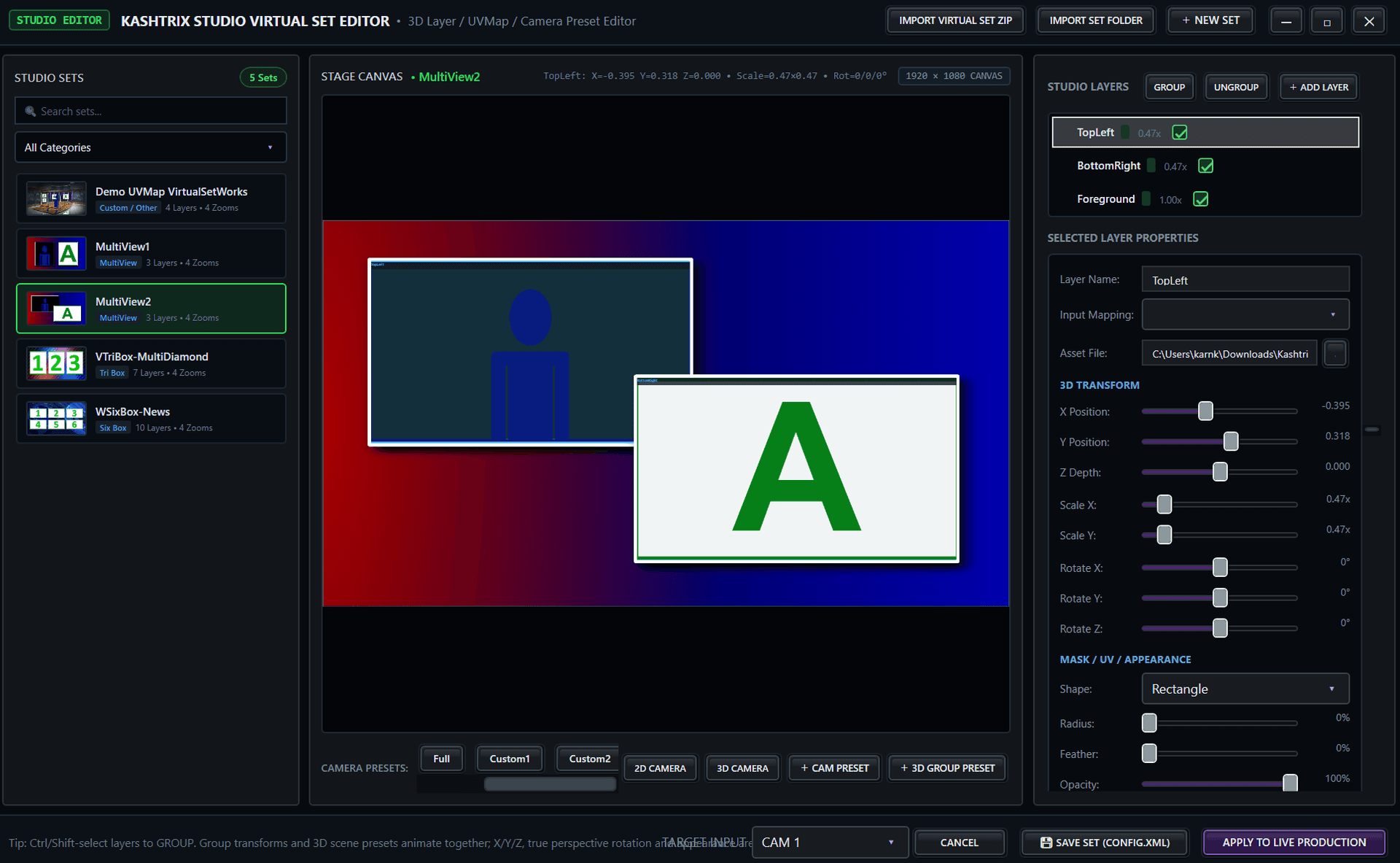

3D Virtual Studio & Canvas Stage Editor
Real-time GPU green-screen chroma keying, anchor positioning, and interactive 3D virtual sets.
Transform modest studio spaces into state-of-the-art virtual sets. The GPU stage canvas maps anchor talent over photorealistic 3D sets with real-time despill, depth masking, and coordinated pan/tilt virtual camera navigation.
.png&w=1920&q=75)

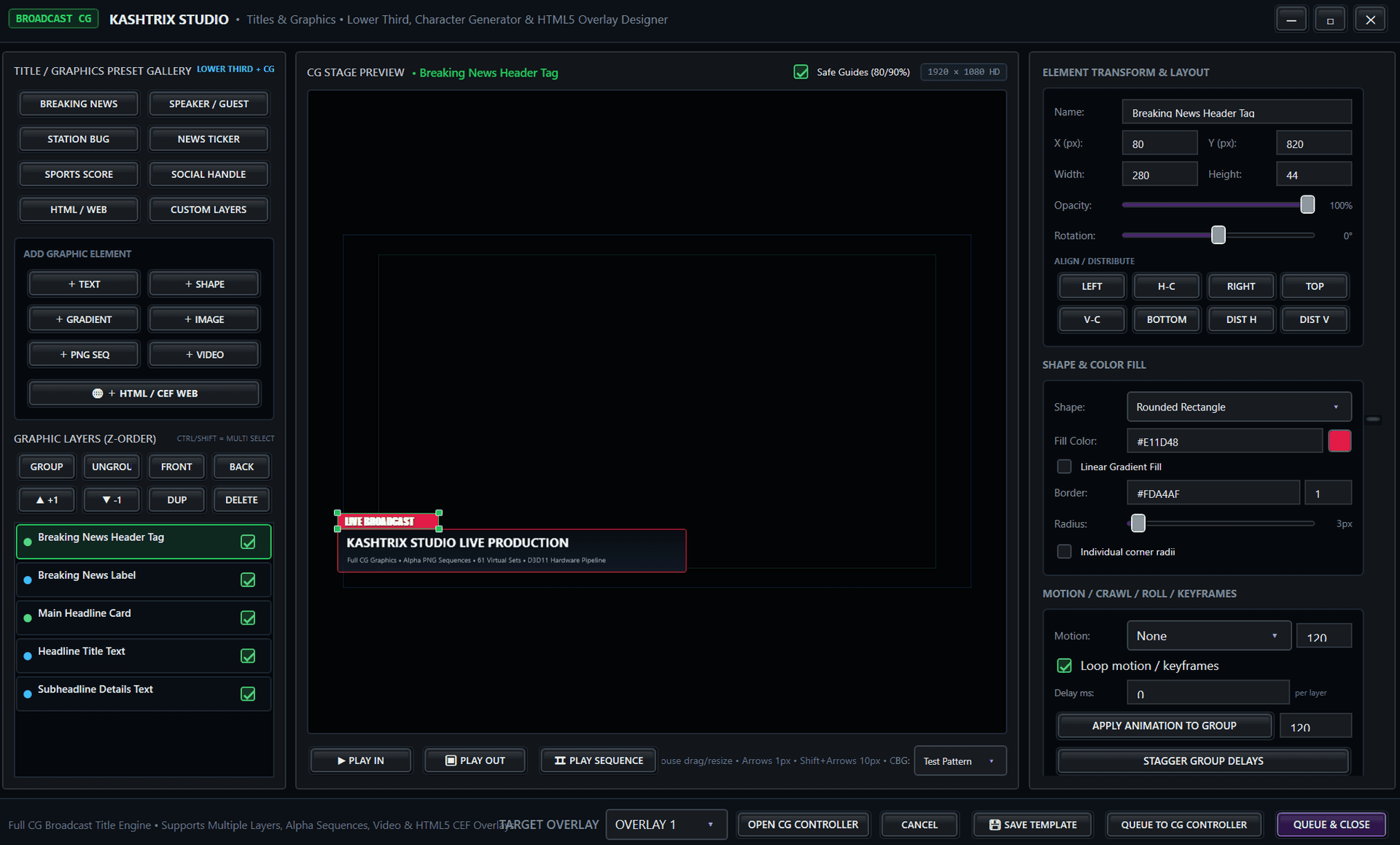

Live Lower-Third & Graphic Overlay Designer
On-the-fly text replacement, breaking news tickers, and scoreboard graphics during live production.
A fast, dedicated graphics layer designer allowing studio operators to compose, edit, and fire dynamic title overlays, lower thirds, presenter tags, and emergency news tickers without interrupting ongoing program playback.
.png&w=1920&q=75)

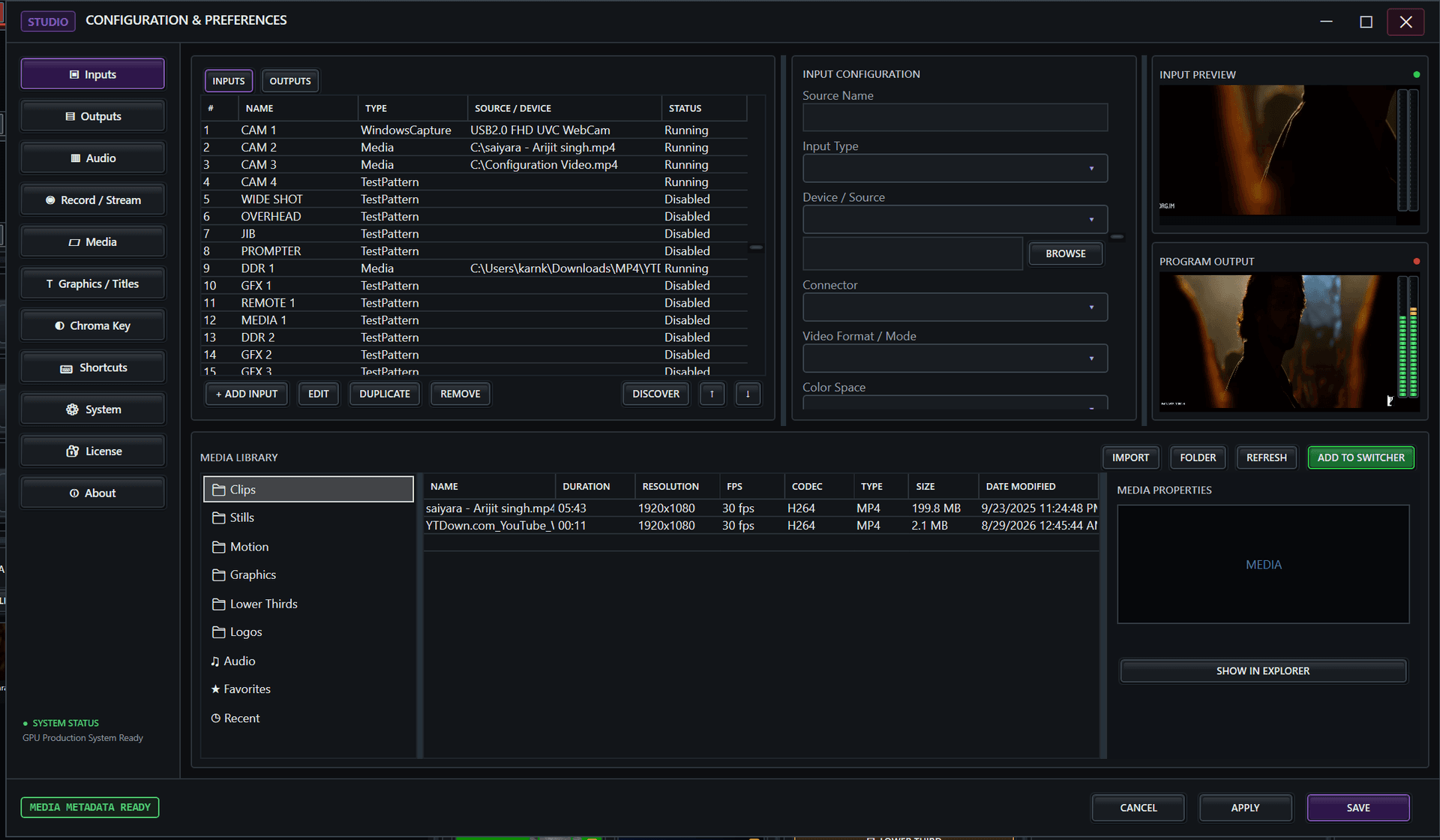

Device Routing Matrix & Media Ingest Dock
Hardware SDI/HDMI baseband capture, NDI network streams, USB cameras, and high-speed asset bin.
The input backbone connecting physical studio equipment to Kashtrix Studio. Configure Blackmagic DeckLink SDI inputs, AJA capture devices, NDI 6 low-latency IP streams, RTSP remotes, and direct NVMe disk recording in high-bitrate ProRes or MP4.
Kashtrix Studio Production Desk
Elevate Your Live Television Production.
Whether operating a broadcast news control room, OB production van, or multi-camera studio, Kashtrix Studio delivers rock-solid stability and sub-frame switching accuracy.
