Monitoring

Broadcast Monitoring Wall & Tile Mosaic

Low-latency mosaic video wall monitor displaying multiple channel outputs, live inputs, and preview channels on a single or multi-screen display.

MosaicPPM / VUTallyTimecode

Request demo Capabilities

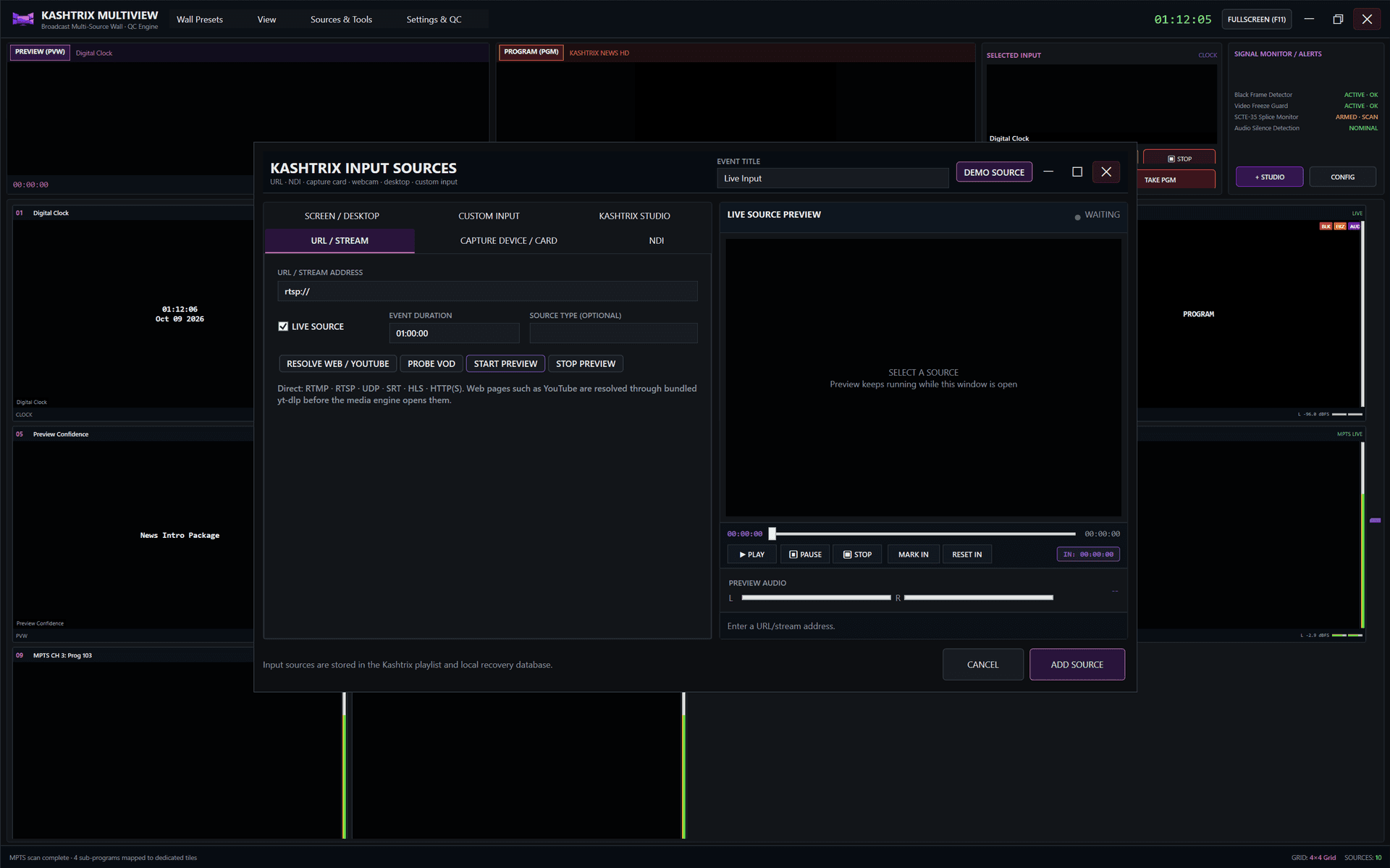

Broadcast Monitoring Wall & Tile Mosaic interface

PGM

PVW

CAM 1

CAM 2

GFX

REMOTE

View 01 / 04 · Confidence Mosaic

Low-Latency Broadcast Confidence Mosaic

High-density multi-channel monitoring wall with hardware acceleration.

Hardware-accelerated broadcast multiviewer displaying up to 16 program, preview, and live camera feeds on high-resolution master control room monitors with under 1 frame of rendering latency.

Flexible mosaic layouts:1+3, 2x2, 3x3, 4x4, 8+2, and custom user-defined operational grids

Ultra-low rendering latency:Sub-16ms GPU pipeline ensuring frame-accurate live visual switching

Universal output streaming:Multi-head HDMI 2.1, DisplayPort 1.4, and low-latency NDI 6 IP studio feeds

GPU hardware acceleration:Dedicated NVDEC/NVENC hardware decoders supporting up to 16 concurrent 4K feeds

Broadcast Monitoring Wall & Tile Mosaic - Low-Latency Broadcast Confidence Mosaic

Interactive Workspace

Workstation Preview · View 01Native Workstation Display · Multiview

View 02 / 04 · Dynamic Tally

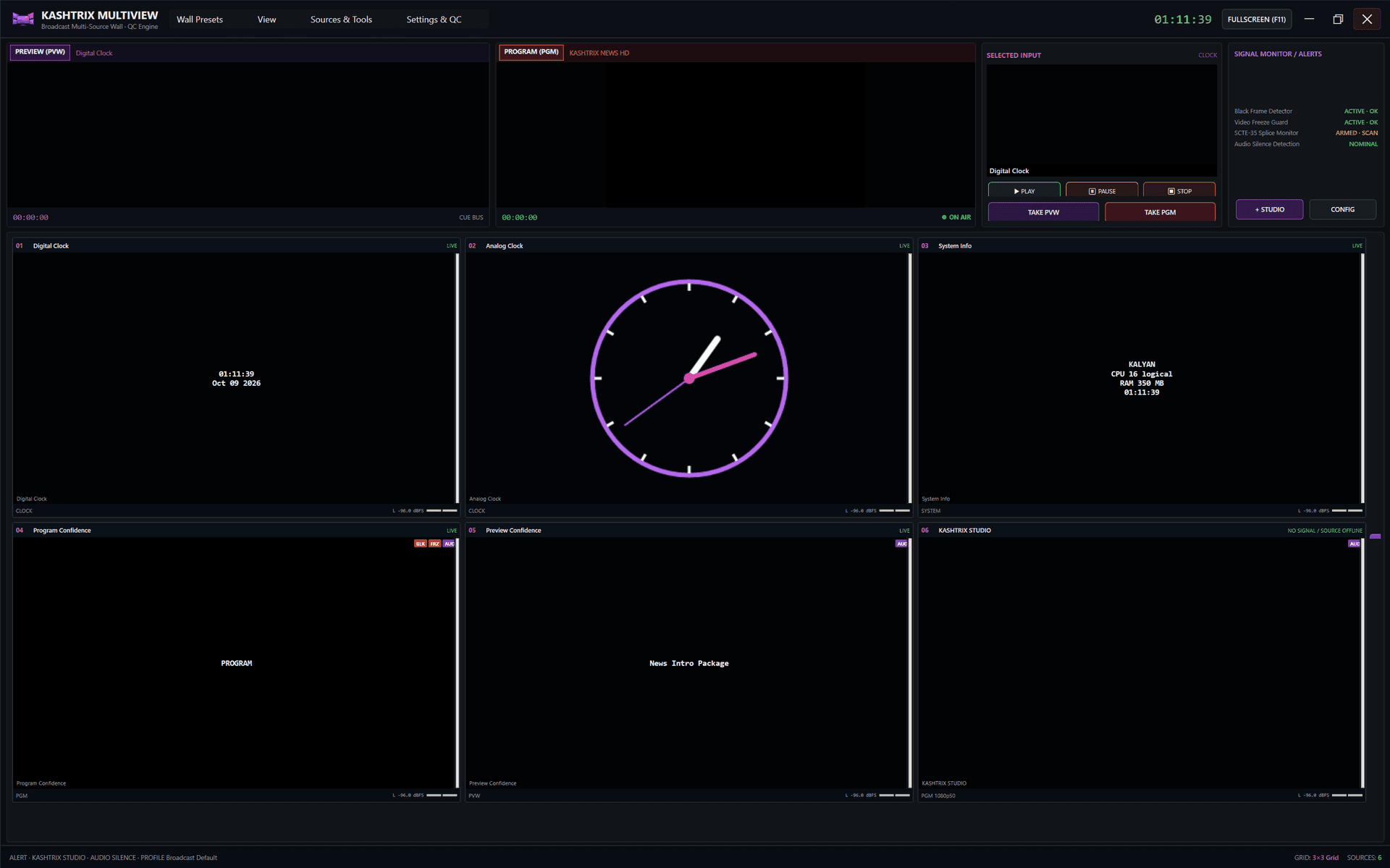

Dynamic Tally & Program / Preview Indicator Borders

Sub-frame visual tally borders reflecting master switcher states.

Displays dynamic tally borders around video tiles: Red for on-air Program, Green for cued Preview, and Amber for auxiliary channels. Tally signals synchronize instantaneously via TSL UMD protocol and NDI.

Bi-directional visual tally:Red (PGM) and Green (PVW) colored border highlights with custom stroke width

TSL UMD protocol integration:Native TSL UMD v3.1, v4.0, and v5.0 network protocol binding with vision mixers

Dynamic source identification:Automated UMD text updates reflecting routing switcher crosspoints and camera IDs

Auxiliary status indicators:Yellow preview cues, freeze-frame alerts, and loss-of-signal warning banners

Broadcast Monitoring Wall & Tile Mosaic - Dynamic Tally & Program / Preview Indicator Borders

Interactive Workspace

Workstation Preview · View 02Native Workstation Display · Multiview

View 03 / 04 · Audio Telemetry

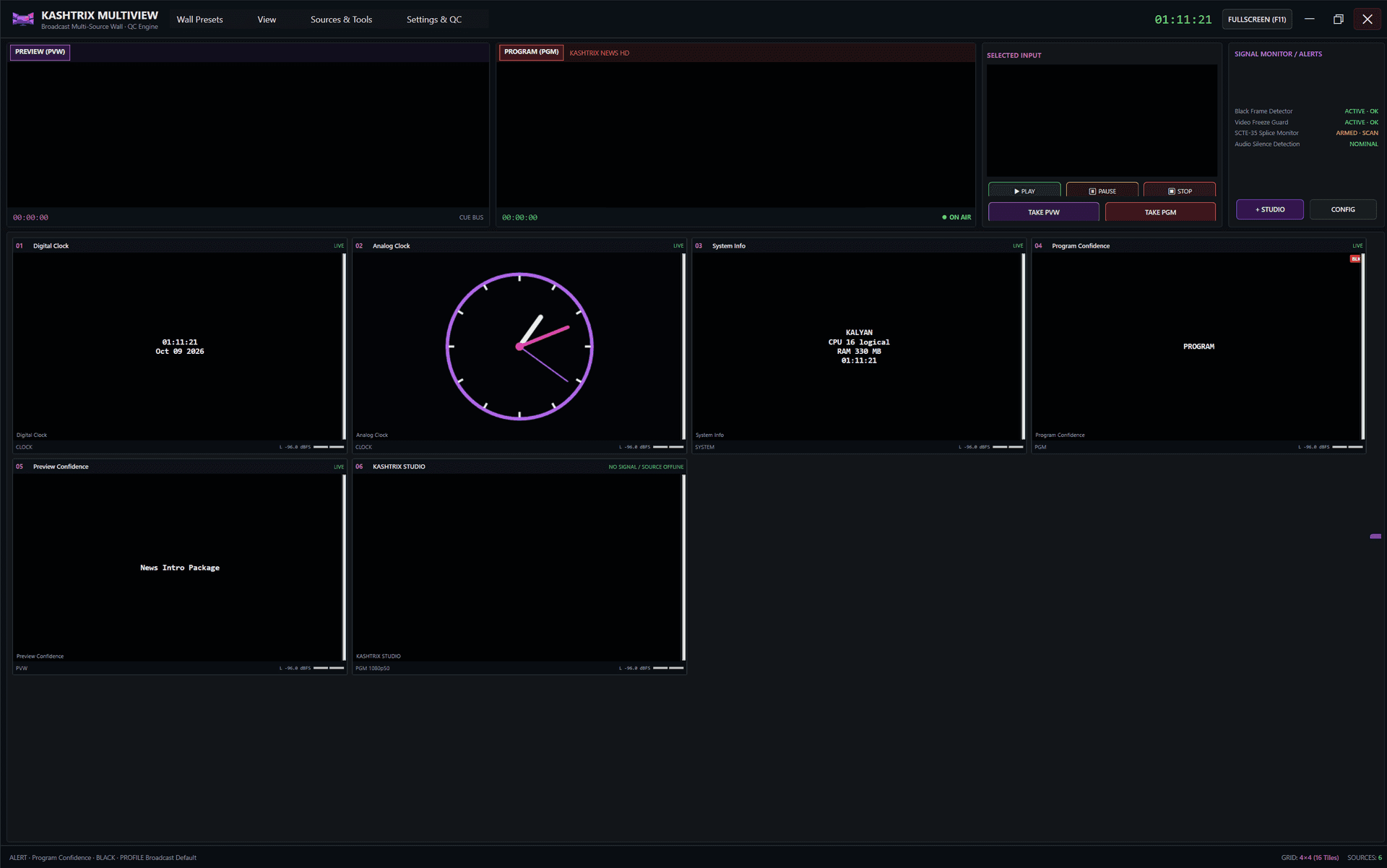

Multi-Channel PPM & VU Peak Audio Meters

Continuous confidence monitoring of all audio channels simultaneously.

Real-time audio meter overlays rendered on each mosaic tile. Displays Peak Program Meters (PPM) and VU ballistics with peak-hold bars, dBFS scales, and stereo phase correlation indicators.

High-density audio metering:Multi-track PPM and True-Peak ballistic meters for up to 16 channels per tile

Stereo phase correlation:Real-time phase correlation goniometers identifying acoustic cancellations instantly

Intelligent threshold alarms:Automated silence detection and audio clipping warnings rendered over video tiles

Selectable solo audio monitor:Instant operator mouse-click soloing to master control room headphones

Broadcast Monitoring Wall & Tile Mosaic - Multi-Channel PPM & VU Peak Audio Meters

Interactive Workspace

Workstation Preview · View 03Native Workstation Display · Multiview

View 04 / 04 · Clock & Timecode Overlays

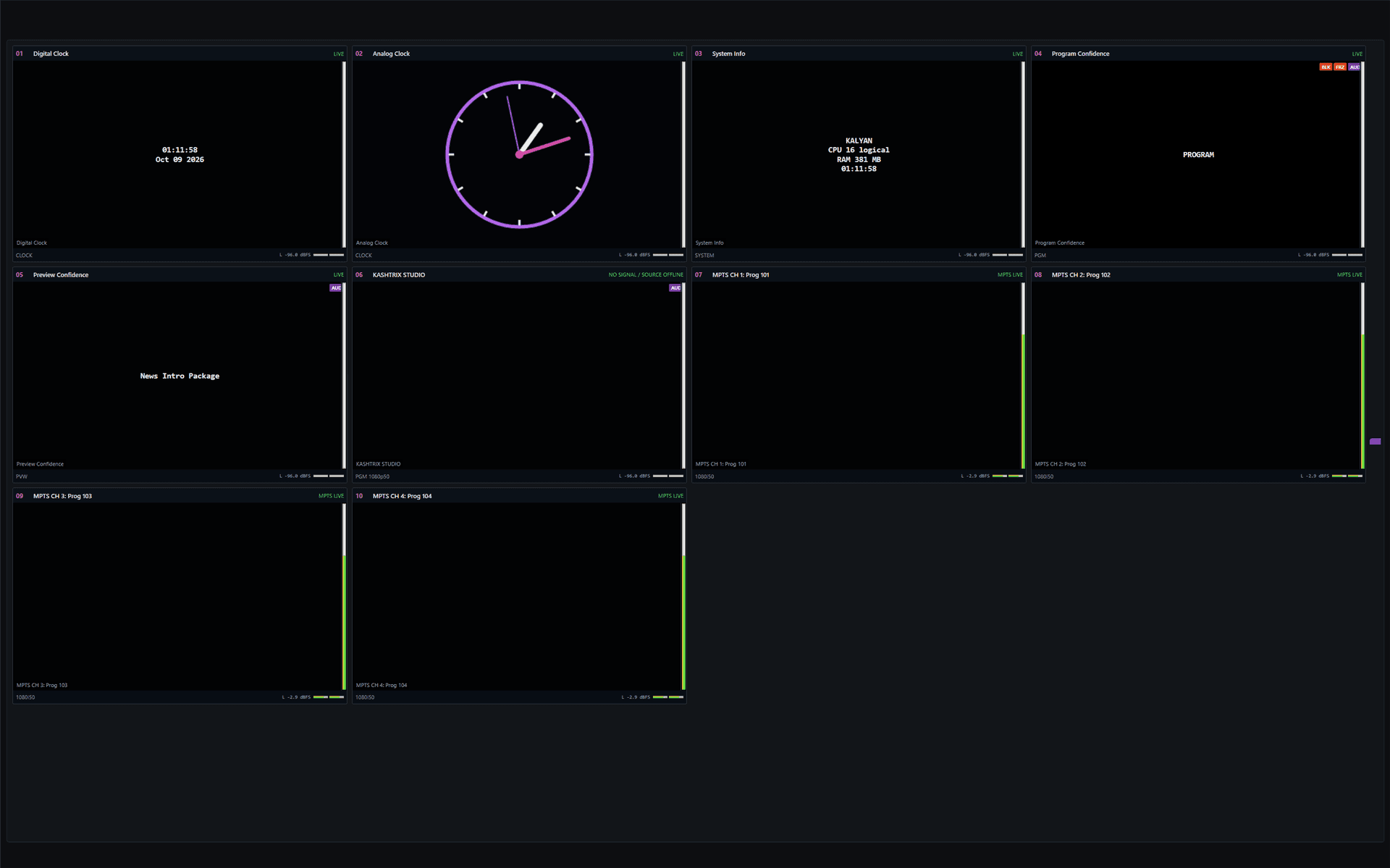

SMPTE Timecode & Precision Station Master Clocks

Synchronize master control timing with prominent on-screen clocks.

Overlays precision broadcast clocks and linear timecode (LTC) displays onto the multiviewer canvas. MCR operators monitor wall-clock time, countdown to commercial breaks, and clip remaining times at a glance.

Precision master clock synchronization:PTP IEEE-1588 and NTP synchronized analog and digital studio wall clocks

SMPTE timecode telemetry:Continuous SMPTE 12M LTC and VITC timecode display with sub-frame accuracy

Automated rundown countdowns:Dynamic countdown timers showing exact time remaining to commercial blocks

Custom text & branding overlays:Station bugs, channel identifiers, and emergency crawl monitor indicators

Broadcast Monitoring Wall & Tile Mosaic - SMPTE Timecode & Precision Station Master Clocks

Interactive Workspace

Workstation Preview · View 04Native Workstation Display · Multiview

Capabilities

Built around the monitoring workflow.

The page uses the interface and operating model of this application only. Screenshots from unrelated Kashtrix products are not reused here.

Flexible Mosaic Layouts

Supports 2x2, 3x3, 4x4, 8+1, and customized non-uniform grid layouts.

On-Screen Heads-Up Display (HUD)

Multi-channel audio VU meters and Peak Program Meters (PPM) with peak-hold bars.

On-Air Tally borders:Red (Live on Program) and Green (Cued on Preview).

Running timecode clocks, channel names, format tags (e.g., 1080i50 · ProRes · Stereo), and clip countdown timers.

Direct Tile Expansion

Double-click any mosaic tile to instantly expand it to full-screen confidence monitoring.

Role

Multiview

Workspace

Broadcast Monitoring Wall & Tile Mosaic

Platform

Windows x64

Operation

24/7 broadcast

Next application

Newsroom Computer System Integration (MOS 2.8.4)

Native integration with television newsrooms, synchronizing stories, scripts, and broadcast rundowns.

Explore Newsroom

Multiview deployment

Evaluate Broadcast Monitoring Wall & Tile Mosaic for your facility.

Share your channel count, video standards, hardware interfaces, storage paths and automation requirements. We’ll map configuration and integration options around the actual broadcast workflow.

Request demo Talk to engineering
