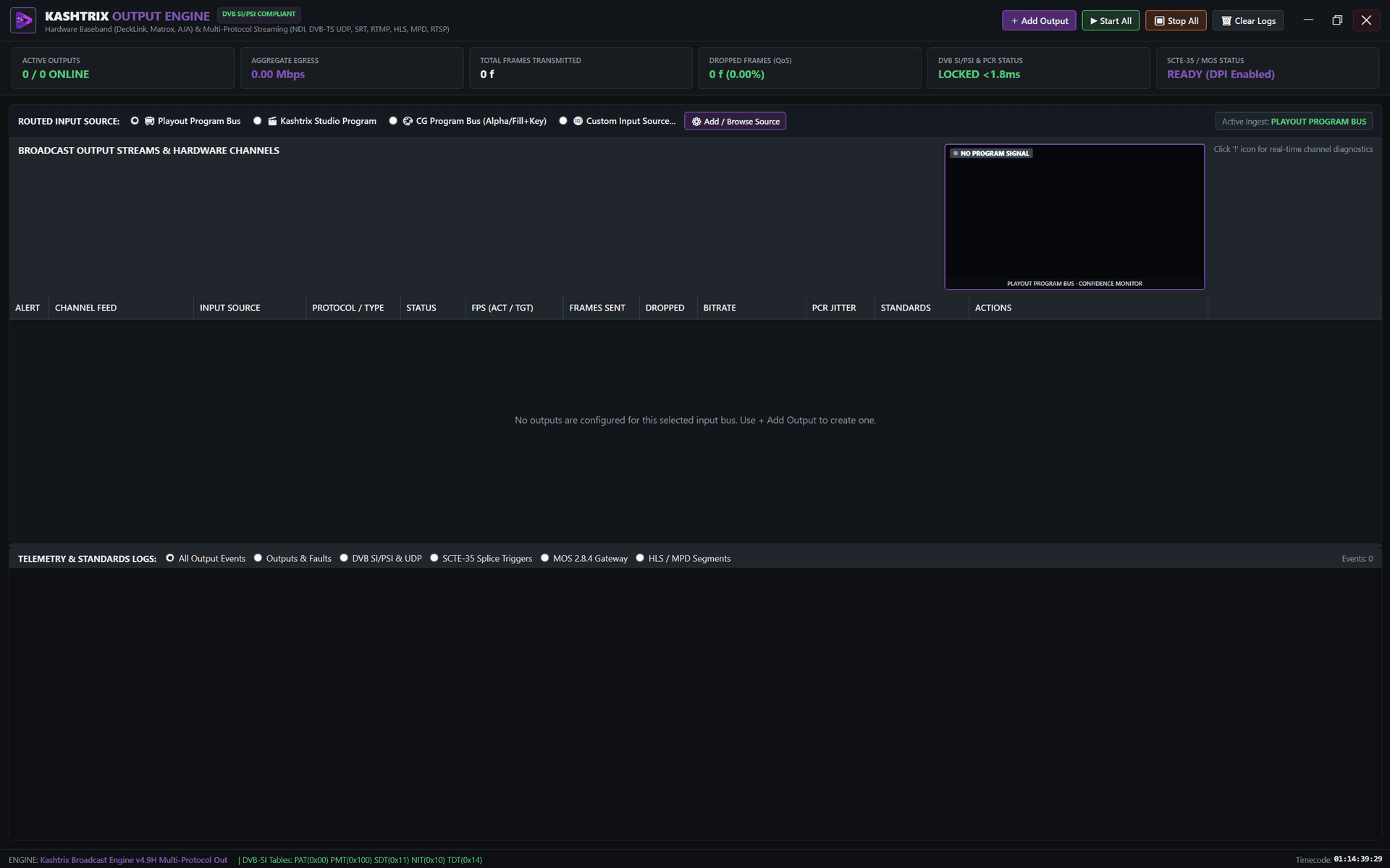

Transmission & Multi-Protocol Output interface
View 01 / 04 · Transmission Matrix

Multi-Protocol Master Transmission Matrix

Connecting linear playout to SDI baseband, IP networks, and OTT CDNs.

Central transmission router distributing master control video to physical broadcast cards, uncompressed IP studio fabrics, and multi-bitrate internet streaming endpoints simultaneously.

Simultaneous multi-destination output:Concurrent routing to DeckLink baseband, NDI IP, and OTT CDNs with independent scaling
Hardware encoding acceleration:Full offload support for NVIDIA NVENC, Intel QSV, and AMD AMF video pipelines
Transmission telemetry:Continuous packet loss counters, buffer occupancy gauges, and network bitrate graphs
Automated stream reconnect:Sub-second failover recovery with auto-healing TCP/UDP stream reconnects
Transmission & Multi-Protocol Output - Multi-Protocol Master Transmission Matrix
Interactive Workspace
Workstation Preview · View 01Native Workstation Display · Transmission
View 02 / 04 · Baseband Hardware

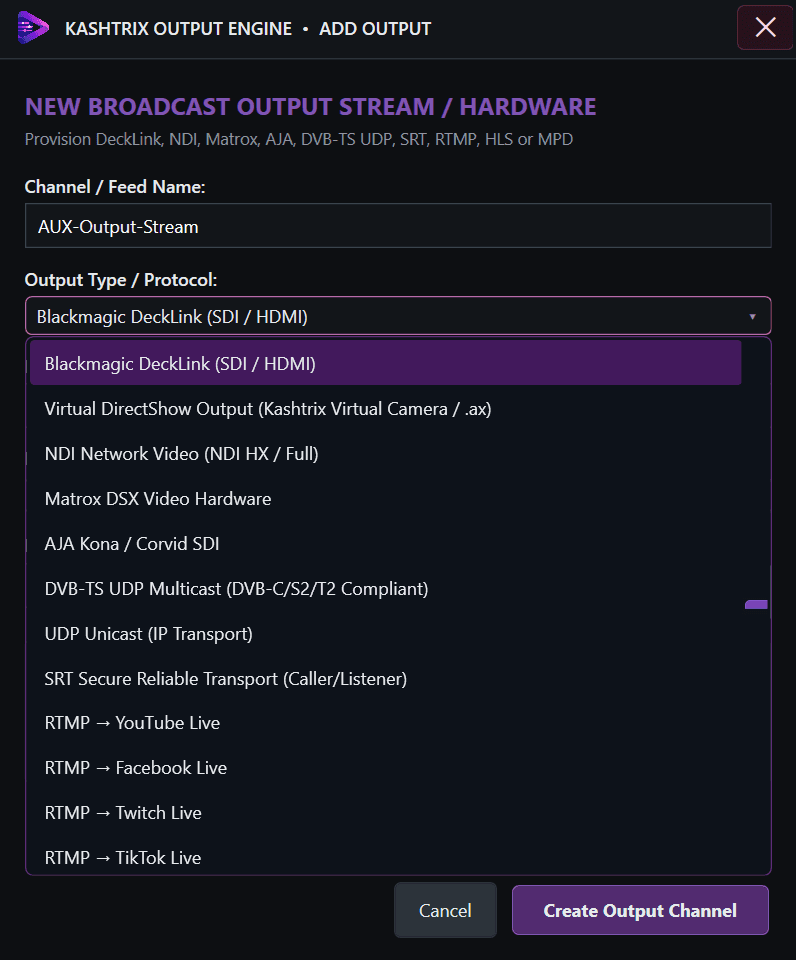

Blackmagic DeckLink 12G-SDI & Genlock Engine

Direct-to-silicon uncompressed baseband television output.

Professional hardware driver interface for Blackmagic DeckLink 12G/6G/3G/HD-SDI and HDMI outputs. Supports up to 16 channels of embedded audio, hardware genlock sync, and VANC closed captioning.

Comprehensive device support:Blackmagic DeckLink 12G-SDI, HDMI, AJA Kona, Magewell, and USB3 UVC cameras
Genlock frame synchronization:Tri-level and blackburst sync reference alignment for glitch-free production cutting
Uncompressed baseband broadcast:SMPTE 292M, 424M, and 2082 compliant 10-bit uncompressed YUV 4:2:2 output
Ancillary data embedding:VANC closed captioning insertion for CEA-608 / CEA-708 and active format descriptors (AFD)
Transmission & Multi-Protocol Output - Blackmagic DeckLink 12G-SDI & Genlock Engine
Interactive Workspace
Workstation Preview · View 02Native Workstation Display · Transmission
View 03 / 04 · Studio IP & NDI 6

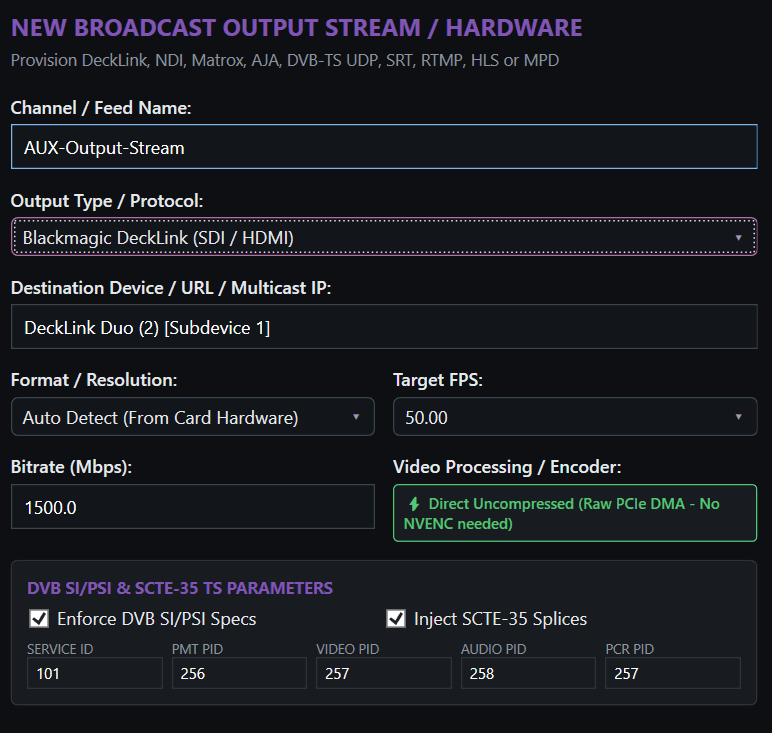

NDI 6 High-Fidelity Studio Network Distribution

Ultra-low-latency IP video with 32-bit RGBA alpha channel.

Broadcast-grade NDI 6 integration for modern IP studio infrastructures. Emits pristine full-raster video with 32-bit alpha channel (Fill and Key) for downstream vision mixers with bi-directional studio tally signaling.

Low-latency NDI 6 studio networking:Network video discovery with bi-directional PTZ camera control and tally
Fill & Key alpha transparency:Full 32-bit RGBA transparency over standard 10GbE network infrastructures
Bi-directional tally signaling:Automated red (Program on air) and green (Preview cued) tally states
SMPTE IP compatibility:Ready for SMPTE ST 2110 and ST 2022-6 uncompressed IP transport workflows
Transmission & Multi-Protocol Output - NDI 6 High-Fidelity Studio Network Distribution
Interactive Workspace
Workstation Preview · View 03Native Workstation Display · Transmission
View 04 / 04 · Digital TV Multiplexing

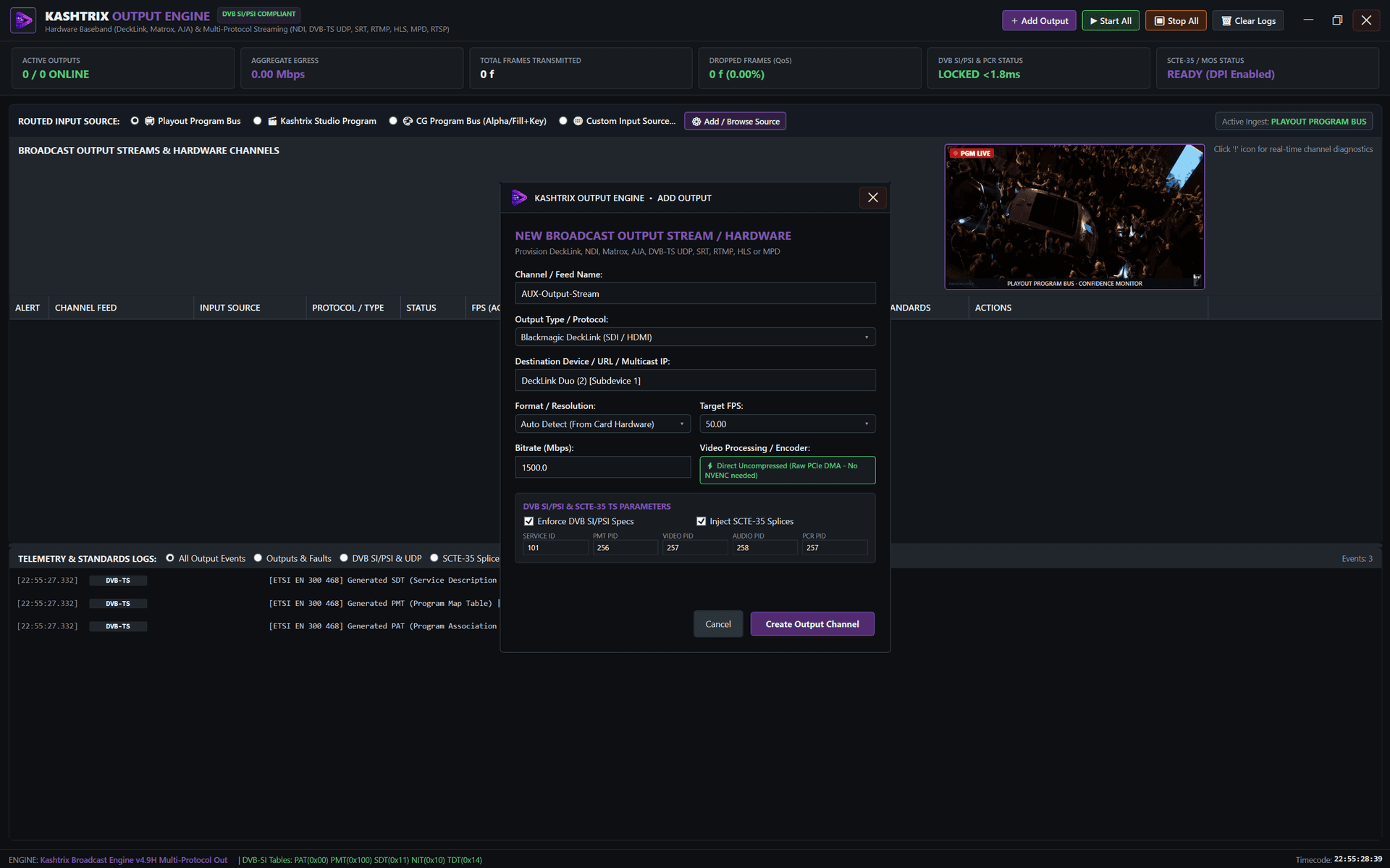

DVB Transport Stream & Table Multiplexing Engine

Compliant digital television broadcast multiplexing for cable, sat & DTT.

Generates fully standard-compliant DVB-TS UDP unicast and multicast streams for DVB-T/T2, DVB-S/S2, and DVB-C modulators with microsecond-level PCR precision and full SI/PSI metadata table insertion.

DVB table generation:Automated multiplexing of PAT, PMT, SDT, NIT, and TDT/TOT signaling tables
PCR clock precision:High-precision Program Clock Reference packet clocking preventing receiver buffer overflows
Constant Bitrate (CBR) enforcement:Automated null packet stuffing maintaining exact modulator bitrates
Multi-program multiplexing:Coordinated multi-channel transport streams for DVB-T/T2, DVB-S/S2, and DVB-C systems
Transmission & Multi-Protocol Output - DVB Transport Stream & Table Multiplexing Engine
Interactive Workspace
Workstation Preview · View 04Native Workstation Display · Transmission

Capabilities

Built around the transmission workflow.

The page uses the interface and operating model of this application only. Screenshots from unrelated Kashtrix products are not reused here.

01

Baseband Hardware Broadcast Output

Blackmagic Design DeckLink & UltraStudio:12G/6G/3G/HD-SDI and HDMI output with multi-channel embedded audio (up to 16 channels), genlock sync, and VANC data insertion.
AJA Kona & Corvid:Professional video I/O with reference sync and ultra-low latency.
Matrox DSX Series:Enterprise hardware playout integration.
02

IP Video & Studio Network Distribution

NDI 6 Integration:Ultra-high-quality, low-latency network video output with full 32-bit RGBA alpha channel (fill & key) support and studio tally signaling.
SMPTE ST 2110 / ST 2022-6:High-end uncompressed IP broadcast infrastructure compatibility.
03

DVB Digital Television Transport Streams

DVB-TS UDP (Unicast & Multicast):Fully compliant digital broadcast transport streams for cable (DVB-C), terrestrial (DVB-T/T2), and satellite (DVB-S/S2) modulators.
DVB SI/PSI Table Engine:Injects Program Association Table (PAT), Program Map Table (PMT), Service Description Table (SDT), Network Information Table (NIT), and Time and Date Table (TDT/TOT).
PCR Precision:High-precision Program Clock Reference packet clocking to prevent buffer underflows/overflows in professional receivers.
04

Digital Ad Insertion & Splice Signaling

SCTE-35 Engine:Generation and injection of standard SCTE-35 splice insert cues, time signals, and commercial segmentation descriptors for downstream regional ad replacement systems.
05

Internet OTT & Streaming Protocols

SRT (Secure Reliable Transport):Ultra-reliable, encrypted (AES-128/256), low-latency contribution feed in Caller, Listener, and Rendezvous modes with ARQ packet recovery.
RTMP / RTMPS:Secure streaming to YouTube Live, Facebook Live, Twitch, Kick, and custom CDN endpoints.
HLS & MPEG-DASH / MPD:On-the-fly chunking and manifest generation for direct web distribution.
RTSP:Real-time streaming server for internal surveillance and IPTV distribution.
06

Multi-Vendor GPU Accelerated Encoders

NVIDIA NVENC:H.264 & HEVC/H.265 hardware encoding with CBR, VBR, and low-latency tuning profiles.
Intel QuickSync Video (QSV):High-efficiency hardware encode offloading.
AMD AMF:Hardware encoding support for Radeon/Pro graphics.
Software Encoders:Multi-threaded libx264, libx265, and libvpx.
