Live graphics

Live On-Air Character Generator Control Surface

Fast, tactile on-air operator surface for firing graphics, modifying live news straps, breaking news banners, and channel bugs during live broadcasts.

PVW / PGMLayer routingQuick editAuto-out

Request demo Capabilities

Preview

Prepare graphic

Program

Take to air

Live On-Air Character Generator Control Surface interface

View 01 / 04 · On-Air Playout Surface

Live Program / Preview Character Generator Desk

Immediate tactile control for firing graphics during live television broadcasts.

Two-bus Program/Preview graphics control console. Operators preview template updates, verify spelling and visual balance, and take graphics to air with one-click transitions or timed auto-out triggers.

Two-bus display channels:Separate Preview (prepare) and Program (on-air) graphic display channels

Tactile hardware control:Dedicated keyboard shortcuts, X-keys, and GPI/O hardware panel integration

Multi-layer independent routing:Fire a ticker, station bug, and lower third simultaneously

Immediate cut & dissolve takes:Sub-frame transitions with manual crossfading and auto-out timers

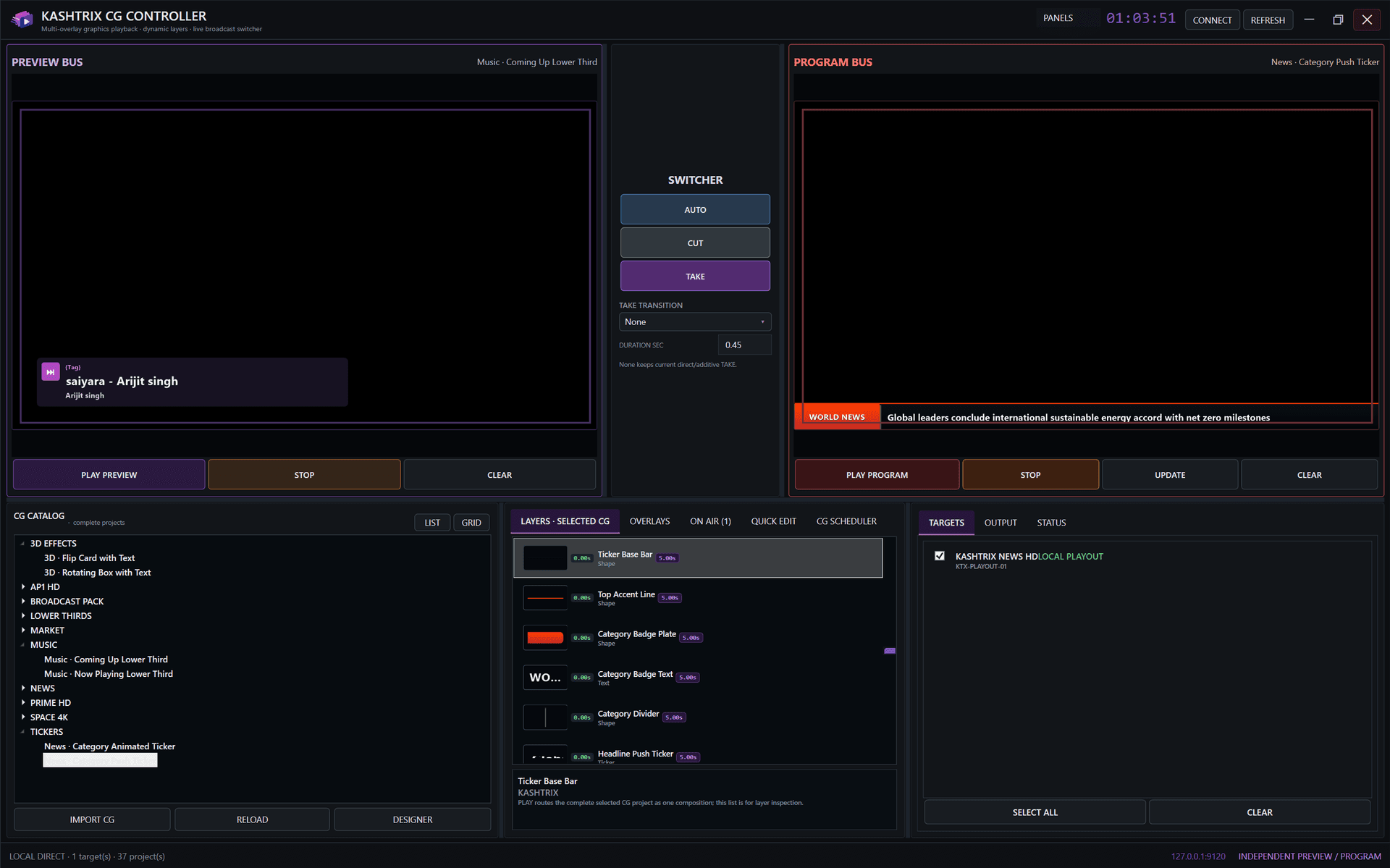

Live On-Air Character Generator Control Surface - Live Program / Preview Character Generator Desk

Interactive Workspace

Workstation Preview · View 01Native Workstation Display · On-Air CG

View 02 / 04 · Layer Routing Matrix

Multi-Layer Z-Index Template Routing Matrix

Simultaneous execution of multiple graphic layers without collisions.

Coordinate multiple active templates across 16 independent visual layers. Station logos, breaking news crawls, clock displays, and sports bugs can be updated and cleared independently.

Layer collision isolation:16 independent visual layers preventing breaking crawls from displacing station bugs

Timed auto-clear countdowns:Programmable countdown triggers ensuring graphics do not linger on screen

Master panic clear trigger:Emergency 'Clear All' button to instantly drop all active on-air graphics

Z-Index template prioritization:Dynamic depth ordering maintaining channel watermarks over lower thirds

Live On-Air Character Generator Control Surface - Multi-Layer Z-Index Template Routing Matrix

Interactive Workspace

Workstation Preview · View 02Native Workstation Display · On-Air CG

View 03 / 04 · Live Field Inspector

Live Quick-Edit & On-the-Fly Text Replacement

Update breaking news text while the graphic is already on air.

When breaking news develops, operators update active lower-third text fields in real time. Smooth typography transitions update the on-screen graphic without jumping or cutting away.

Sub-frame live text replacement:Direct typography updates on active, running on-air graphic templates

Automated broadcast guardrails:Built-in spellcheck and profanity filtering guards prior to committing text

MOS newsroom rundown link:Direct bi-directional binding with NRCS newsroom story rundowns

Instant breaking banner takeover:Urgent bulletin strap insertion without disturbing scheduled playlists

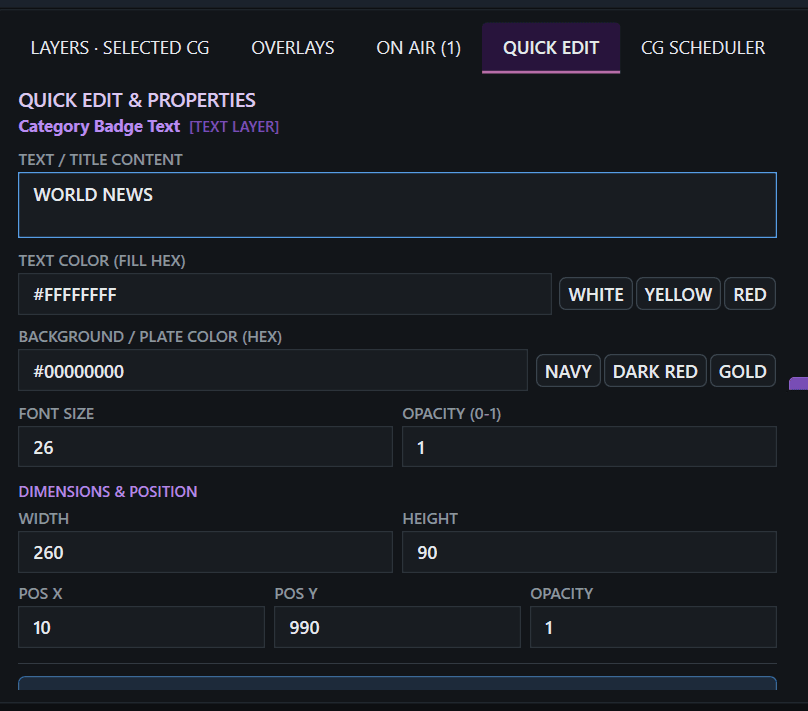

Live On-Air Character Generator Control Surface - Live Quick-Edit & On-the-Fly Text Replacement

Interactive Workspace

Workstation Preview · View 03Native Workstation Display · On-Air CG

View 04 / 04 · Automation Integration

Playout Rundown Secondary Event Triggering

Automated graphics firing driven by master control rundown logs.

Automates graphic playout by synchronizing with master rundown events. Programs automatically trigger their respective title bugs, and commercial breaks automatically suppress on-air graphics.

Automated commercial bug suppression:Smart logo bug suppression during paid sponsor commercial breaks

Auto-follow secondary event timing:Graphic in/out triggers linked to master video clip start offsets

REST API & WebSocket control plane:High-speed IP control endpoints for external studio vision switchers

As-run graphics log auditing:Timestamped proof-of-play logging for all aired graphic templates

Live On-Air Character Generator Control Surface - Playout Rundown Secondary Event Triggering

Interactive Workspace

Workstation Preview · View 04Native Workstation Display · On-Air CG
