Channel Master Automation & Matrix Switching

Master control switching and multi-channel automation management interfacing with broadcast hardware matrix routers.

Multi-channelRouter matrixSignal healthFailover
Request demo Capabilities
PLAYOUT A
ROUTER / OUTPUT

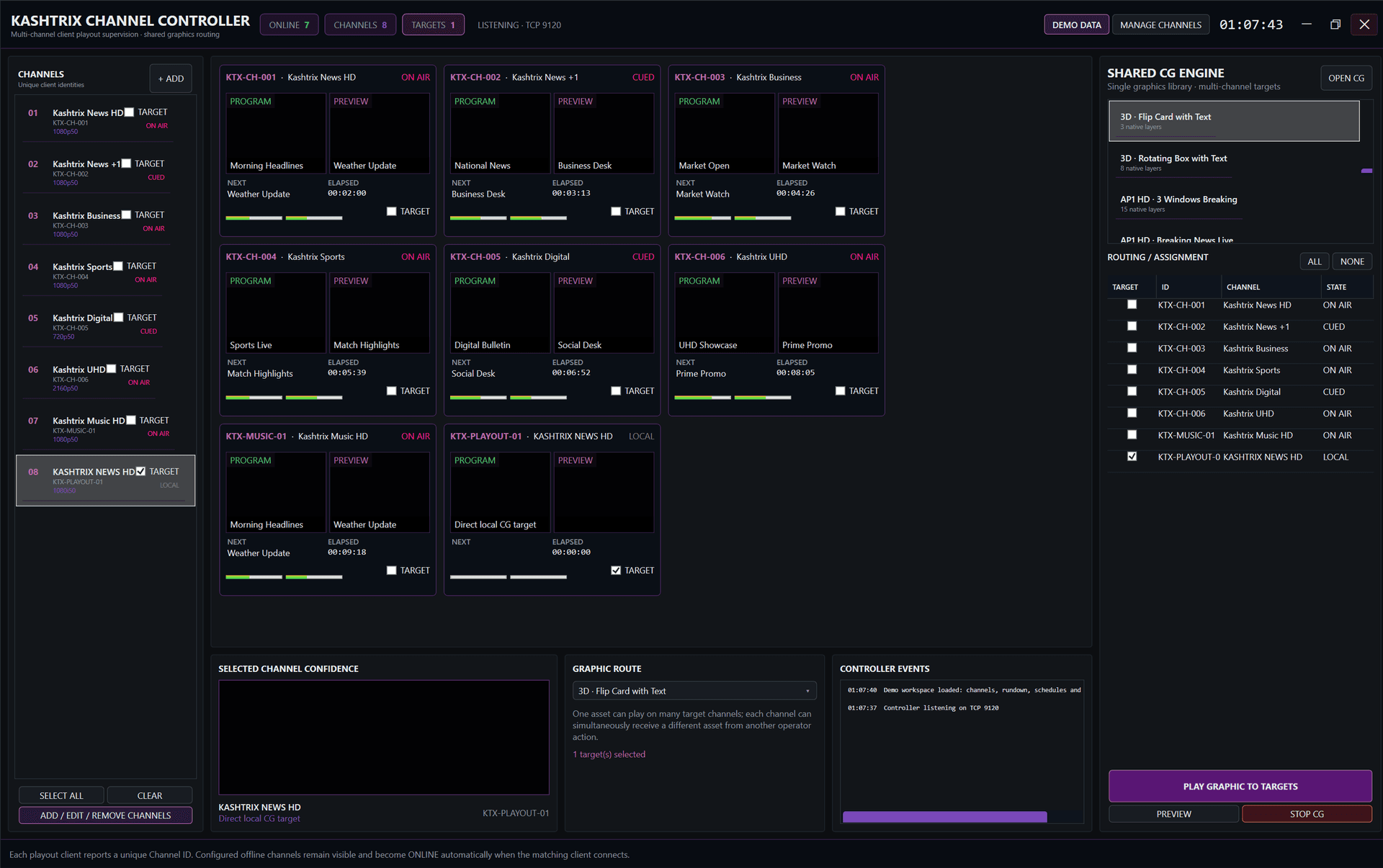

Channel Master Automation & Matrix Switching interface
View 01 / 04 · Master Supervision Wall

Multi-Channel Master Supervision Desk

Centralized operational overview for multi-channel broadcast headends.

Comprehensive operational desk supervising N linear playout channels from a single unified interface. Displays live video feeds, transmission status, storage capacity, and redundant server health.

Multi-channel status wall:Unified multiview grid displaying live program feeds with tally indicators
Continuous audio telemetry:Real-time audio level monitoring and silence detection alarms
Channel-level operational drilldown:Instant inspection of rundown timing and transmission configurations
Headend supervision matrix:Simultaneous multi-station playout oversight from a single control seat
Channel Master Automation & Matrix Switching - Multi-Channel Master Supervision Desk
Interactive Workspace
Workstation Preview · View 01Native Workstation Display · Automation
View 02 / 04 · Router Matrix

Studio Input & Router Crosspoint Matrix

Coordinate live feeds, remote contributions, and studio switchers.

Software routing matrix controlling upstream physical and IP video crosspoints. Switch effortlessly between automated playout, live studio feeds, and remote satellite links.

Software crosspoint routing:Direct control for Blackmagic Videohub, Ross, and NDI IP router matrices
Clean-switch frame synchronization:Reference clock alignment preventing visual tearing during cuts
Emergency cut-to-slate trigger:One-click bypass switch to emergency disaster recovery slate or backup loop
Bi-directional tally coordination:Studio camera and matrix router tally indicators synchronized via IP
Channel Master Automation & Matrix Switching - Studio Input & Router Crosspoint Matrix
Interactive Workspace
Workstation Preview · View 02Native Workstation Display · Automation
View 03 / 04 · Redundancy Supervisor

Frame-Locked 1+1 Redundant Failover Supervisor

Continuous state mirroring between Main and Hot-Standby playout servers.

Monitors primary and backup playout engines with sub-second heartbeats. In the event of primary hardware, OS, or stream failure, initiates clean downstream video router failover in under 40 milliseconds.

Sub-40ms automated failover:Rapid transfer triggering on signal loss, application crash, or frozen frames
Continuous state mirroring:Frame-locked playlist position and clip timecode synchronization across servers
Manual maintenance override:Hardware lockouts for seamless maintenance during live broadcast hours
Redundant storage heartbeat:Continuous verification of shared SAN/NAS and local storage paths
Channel Master Automation & Matrix Switching - Frame-Locked 1+1 Redundant Failover Supervisor
Interactive Workspace
Workstation Preview · View 03Native Workstation Display · Automation
View 04 / 04 · Signal Health Diagnostics

Real-Time Signal Health & Anomaly Alarms

Instant operational visibility into transmission stream parameters.

Ingests sub-second telemetry regarding CPU load, GPU render time, DeckLink buffer fill levels, and network output bitrates to detect degradation before it impacts transmission.

Buffer telemetry alarms:Dropped frame and buffer underrun detection with visual alert banners
DVB transport bitrate compliance:Continuous output bitrate tracking and packet jitter monitoring
Engineering audit logs:Historical incident tracking and error logs for post-broadcast engineering reviews
System resource telemetry:Real-time GPU decoding load, CPU utilization, and thermal monitoring

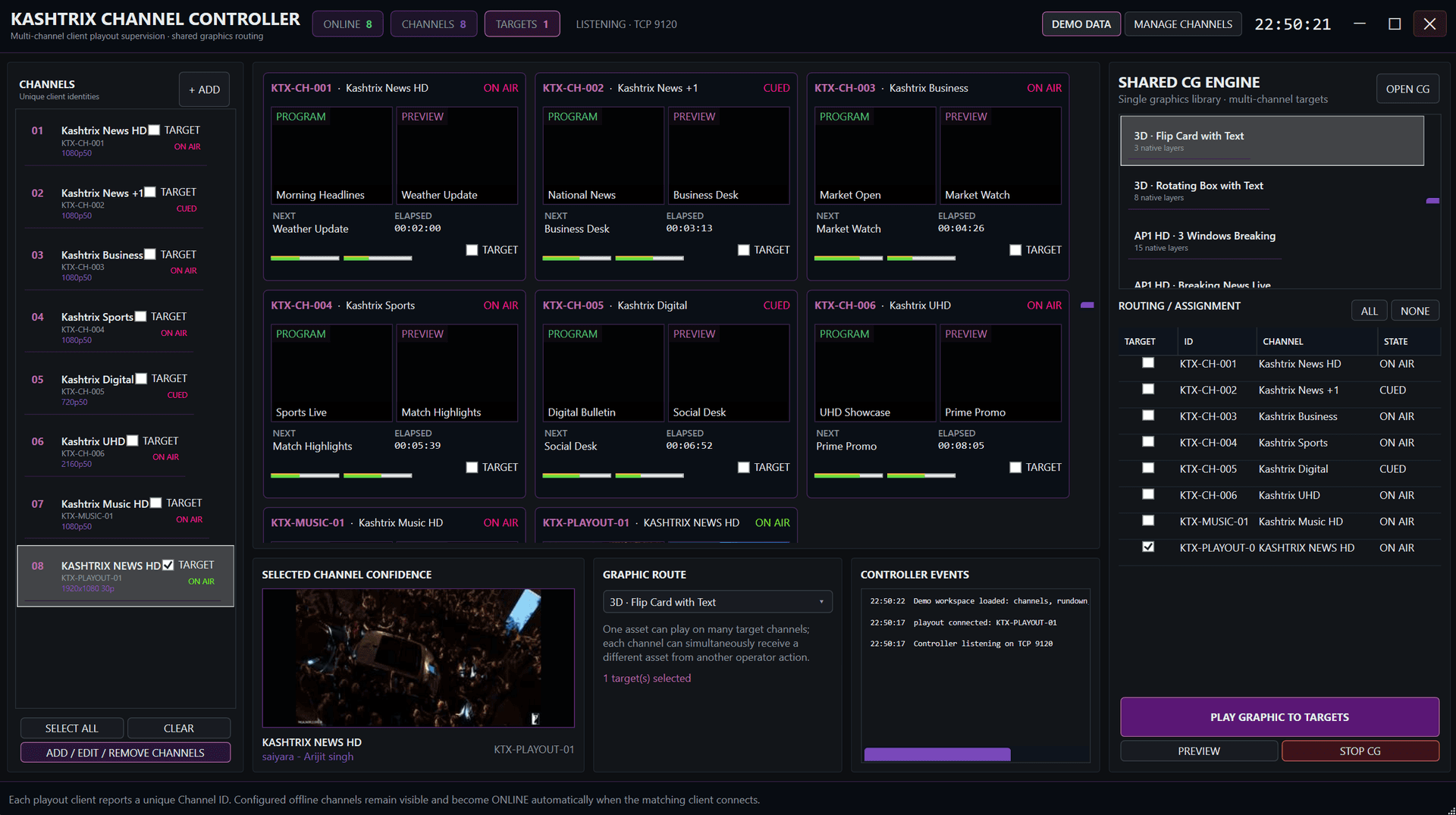

Channel Master Automation & Matrix Switching - Real-Time Signal Health & Anomaly Alarms
Interactive Workspace
Workstation Preview · View 04Native Workstation Display · Automation

Capabilities

Built around the channel control workflow.

The page uses the interface and operating model of this application only. Screenshots from unrelated Kashtrix products are not reused here.

01

Multi-Channel Playout Coordination

Single console to supervise and manage multiple distinct broadcast channels running on the network.
02

Hardware Router Integration

Native network control protocols for SDI matrix routers (Blackmagic Videohub, Ross Video, Grass Valley, Utah Scientific).
Switch physical router crosspoints synchronously with playlist events (e.g., switching from Playout Server to Studio 1 Live Feed).
03

Signal Quality Failover Automation

Monitors live video feeds for signal lock, black frames, and frozen video.
Auto-triggers emergency switchover to backup server, standby logo, or filler video upon signal loss.

Role

Automation

Workspace

Channel Master Automation & Matrix Switching

Platform

Windows x64

Operation

24/7 broadcast

Next application

Broadcast Rundown & Playlist Management

Interactive rundown creation tool for station operators to assemble, edit, and audit daily broadcast transmission logs.

Explore Rundown

Automation deployment

Evaluate Channel Master Automation & Matrix Switching for your facility.

Share your channel count, video standards, hardware interfaces, storage paths and automation requirements. We’ll map configuration and integration options around the actual broadcast workflow.

Request demo Talk to engineering
